1/4"-20 Round Screw Plate

6,30 (5,16 + IVA)

7 in stock

SKU: 545468 Categories: , Tags: ,

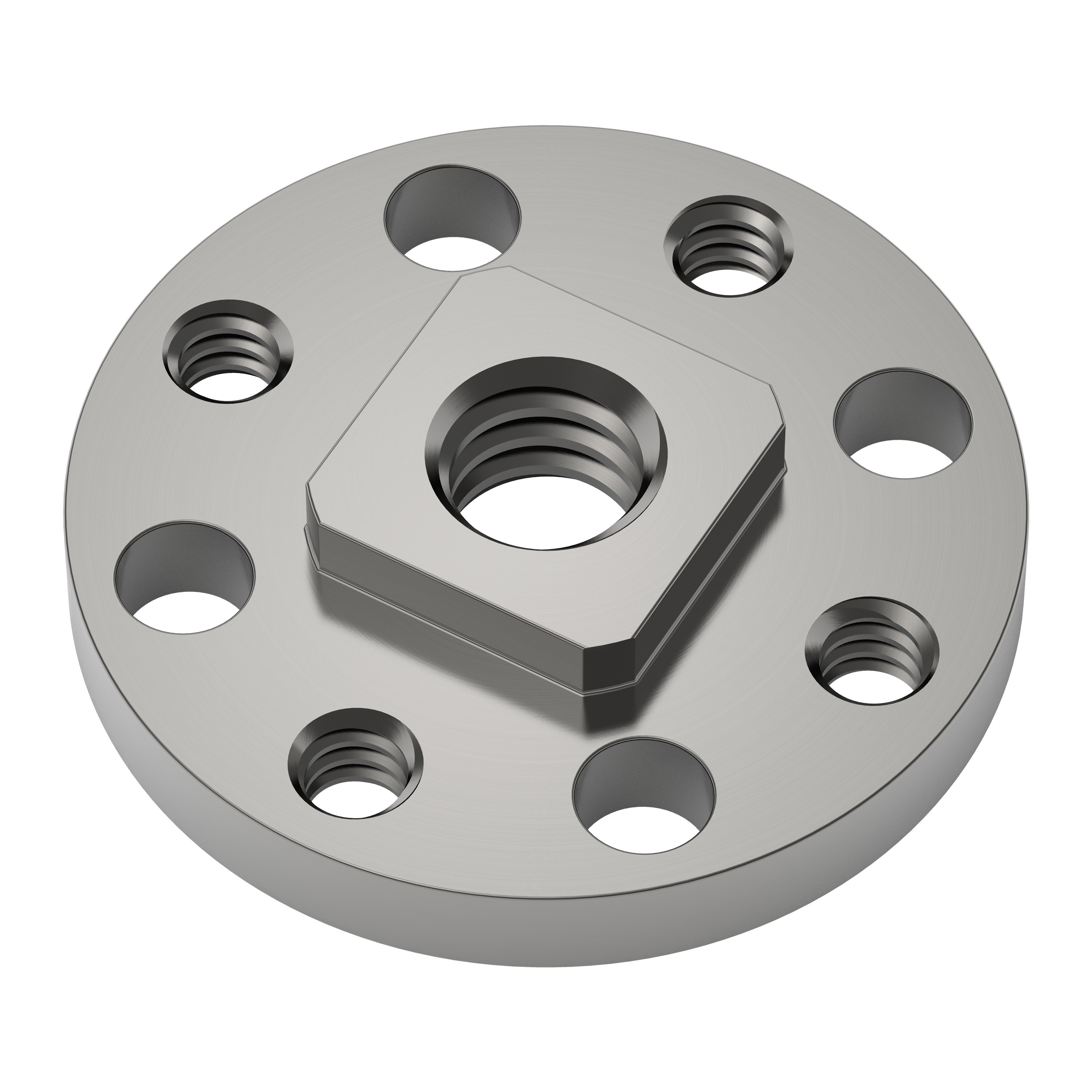

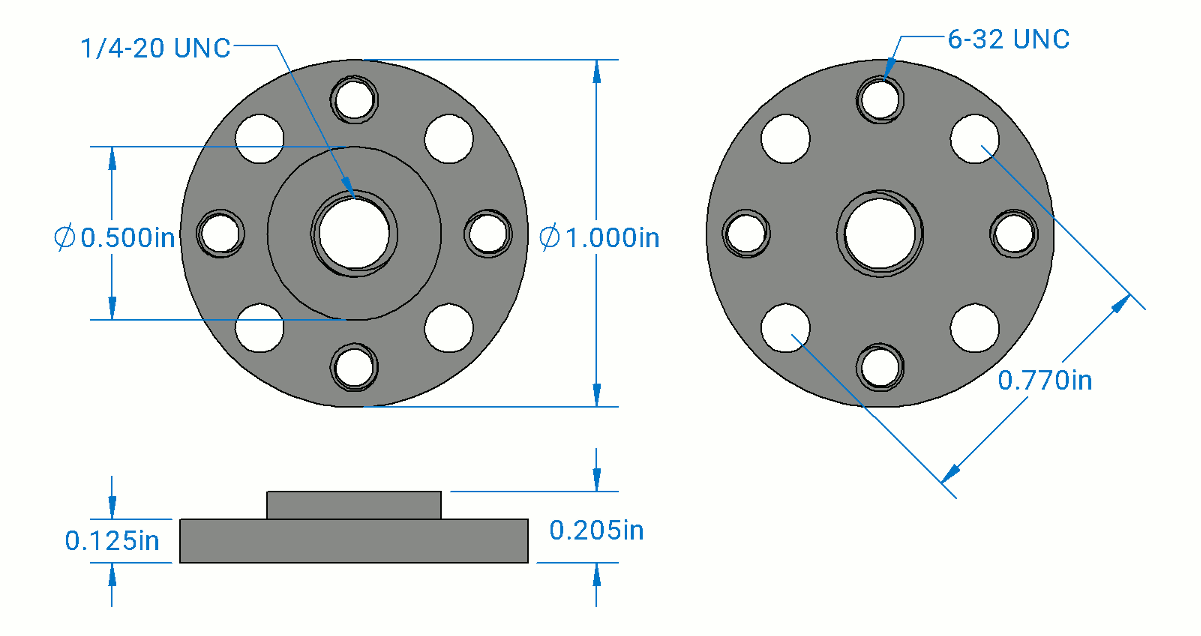

The 1/4"-20 Screw Plate allows you to fasten an object with a 1/4"-20 thread to the center of the .770" hub pattern.  Four of the eight orbital holes on the .770" pattern are tapped to 6-32, the remaining four are thru-hole so the part can be attached in many different ways. The outside diameter of the screw plate is 1" so that it's compatible with 1" components such as clamping hubs and bearings. This part is perfect for attaching an Actobotics assembly to a tripod with a 1/4"-20 stud mount. Screw plates can also be used as a heavy duty threaded inserts for materials that don't take threads well.
