2 Stage Viper-Slide Kit

Motor Not Included you can choose in Yellow Series here

178,41 (146,24 + IVA)

Checking...

SKU: 3210-0002-0002 Category:

2 Stage Viper-Slide Kit

178,41 (146,24 + IVA)

Checking...

SKU: 3210-0002-0002 Category:

Motor Not Included you can choose in Yellow Series here

European Costumers

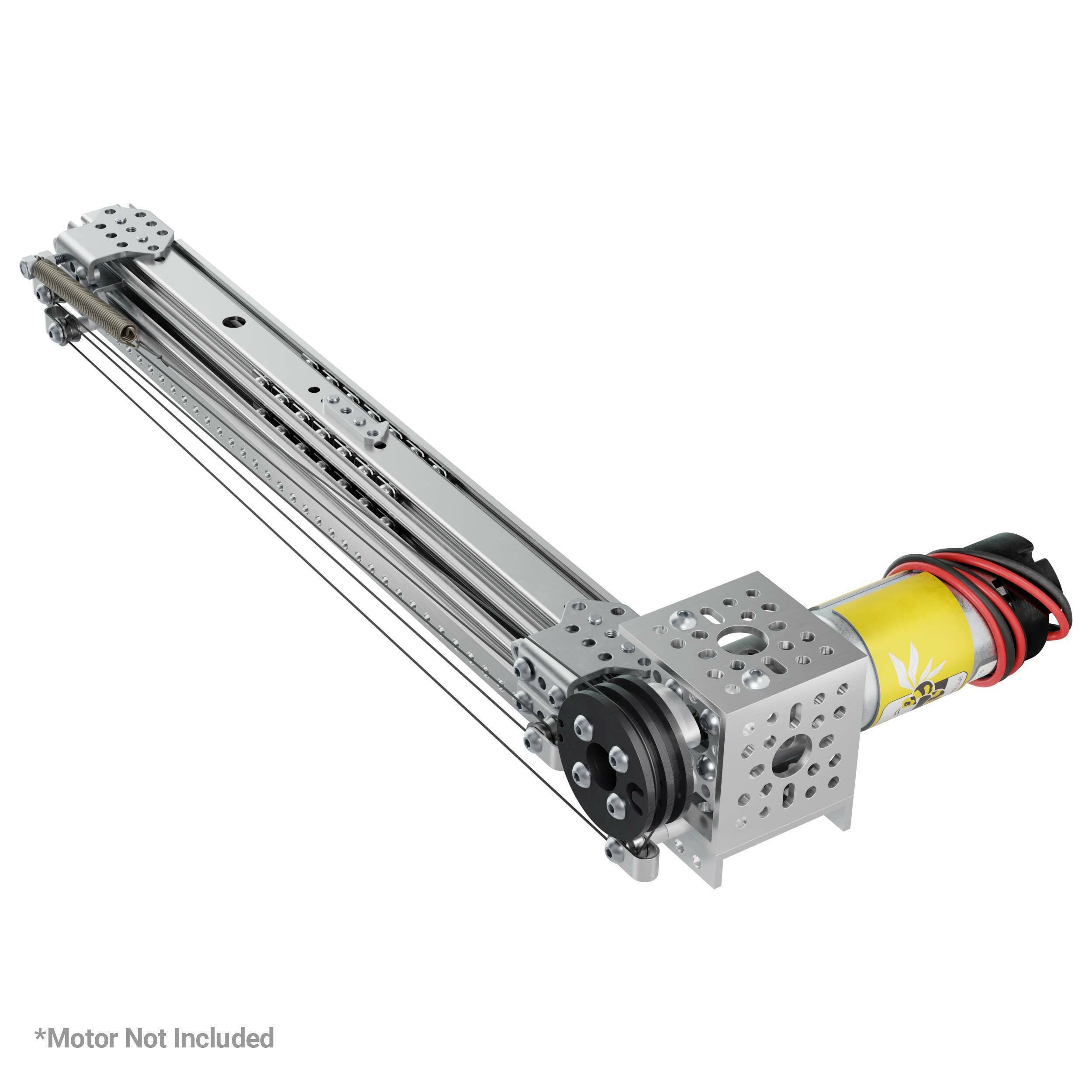

This Two Stage Viper-Slide Kit utilizes Steel Viper-Slides as the backbone of this very smooth and stable slide kit. The Viper Slides are steel so that excellent strength and durability could be captured in a compact form factor.

1120-0001-0048 1 1120 Series U-Channel (1 Hole, 48mm Length)
1121-0015-0384 1 1121 Series Low-Side U-Channel (15 Hole, 384mm Length)
1201-0043-0002 1 1201 Series Quad Block Pattern Mount (43-2)
1309-0016-4008 2 1309 Series Sonic Hub (8mm REX Bore)
1502-0006-0080 1 1502 Series 4mm ID Spacer (6mm OD, 8mm Length) – 4 Pack
1609-0610-0004 2 1609 Series V-Groove Bearing (4mm ID x 10.5mm OD, 6mm Thickness) – 2 Pack
2500-0014-0336 2 Steel Viper-Slide (14-Ball Carriage, 336mm Length, 244mm Travel)
2501-0001-0001 1 Steel End-Stop for Viper-Slide (1-1) – 6 Pack
2501-0001-0002 1 Steel Pulley Bracket for Viper-Slide (1-2) – 4 Pack
2802-0004-0010 1 2802 Series Zinc-Plated Steel Button Head Screw (M4 x 0.7mm, 10mm Length) – 25 Pack
2802-0004-0014 1 2802 Series Zinc-Plated Steel Button Head Screw (M4 x 0.7mm, 14mm Length) – 25 Pack
2802-0004-0020 1 2802 Series Zinc-Plated Steel Button Head Screw (M4 x 0.7mm, 20mm Length) – 25 Pack
2802-0004-0025 1 2802 Series Zinc-Plated Steel Button Head Screw (M4 x 0.7mm, 25mm Length) – 25 Pack
2809-0075-0005 1 Synthetic Cable (0.75mm Diameter, 5M Length)
2812-0004-0007 1 2812 Series Zinc-Plated Steel Nylon-Insert Locknut (M4 x 0.7mm, 7mm Hex) – 25 Pack
2914-0002-0001 2 V-Groove Bearing Shield (2-1) – 2 Pack
2915-0001-0001 1 Extension Spring (8mm OD, 6.8kg Max Load, 80-120mm Length)
4200-0090-0025 1 2.5mm Hex L-Key
4200-0090-0030 1 3mm Hex L-Key
4202-0070-1070 1 7mm Combination Wrench
