5202 Series Yellow Jacket Planetary Gear Motor (13.7:1 Ratio 435 RPM 3.3 – 5V Encoder)

Motor Size	RS-555
Motor Type	Brushed DC
Nominal Voltage	12VDC
Output Shaft	6mm D
Gearbox Style	Planetary
Gear Ratio	13.7:1
Gear Material	Casing: Steel Ring Gear Stage 1: Steel Gear, Acetal Orbital Gears Stage 2: Steel Sun Gear, Steel Orbital Gears
No-Load Speed @ 12VDC	435 RPM
No-Load Current @12VDC	0.25A
Stall Current @12VDC	9.2A
Stall Torque @12VDC	18.7 kg.cm (260 oz-in)
Wire Length	470mm (including connectors)
Wire Gauge	16AWG
Motor Connector Type	3.5mm FH-MC Bullet Connectors
Encoder Connector Type	4-Pos JST XH [FH-MC]
Encoder Type	Relative, Quadrature
Encoder Sensor Type	Magnetic (Hall Effect)
Encoder Voltage Range	3.3 – 5VDC
Encoder Cycles Per Revolution (Encoder Shaft)	7 (Rises of Ch A)
Encoder Cycles Per Revolution (Output Shaft)	95.9 (Rises of Ch A)
Encoder Countable Events Per Revolution (Encoder Shaft)	28 (Rises & Falls of Ch A & B)
Encoder Countable Events Per Revolution (Output Shaft)	383.6 (Rises & Falls of Ch A & B)
Weight	420g

€55,13 (€45,19 + IVA)

Checking...

SKU: 5202-0002-0014 Category: 5202

Spese di spedizione / Shipping cost
Taxes if you live outside Italy (read more…)
Products are shipped worldwide

5202 Series Yellow Jacket Planetary Gear Motor (13.7:1 Ratio 435 RPM 3.3 – 5V Encoder)

€55,13 (€45,19 + IVA)

Checking...

SKU: 5202-0002-0014 Category: 5202

Spese di spedizione / Shipping cost

Motor Size	RS-555
Motor Type	Brushed DC
Nominal Voltage	12VDC
Output Shaft	6mm D
Gearbox Style	Planetary
Gear Ratio	13.7:1
Gear Material	Casing: Steel Ring Gear Stage 1: Steel Gear, Acetal Orbital Gears Stage 2: Steel Sun Gear, Steel Orbital Gears
No-Load Speed @ 12VDC	435 RPM
No-Load Current @12VDC	0.25A
Stall Current @12VDC	9.2A
Stall Torque @12VDC	18.7 kg.cm (260 oz-in)
Wire Length	470mm (including connectors)
Wire Gauge	16AWG
Motor Connector Type	3.5mm FH-MC Bullet Connectors
Encoder Connector Type	4-Pos JST XH [FH-MC]
Encoder Type	Relative, Quadrature
Encoder Sensor Type	Magnetic (Hall Effect)
Encoder Voltage Range	3.3 – 5VDC
Encoder Cycles Per Revolution (Encoder Shaft)	7 (Rises of Ch A)
Encoder Cycles Per Revolution (Output Shaft)	95.9 (Rises of Ch A)
Encoder Countable Events Per Revolution (Encoder Shaft)	28 (Rises & Falls of Ch A & B)
Encoder Countable Events Per Revolution (Output Shaft)	383.6 (Rises & Falls of Ch A & B)
Weight	420g

5202 Series Yellow Jacket Planetary Gear Motor (13.7:1 Ratio 435 RPM 3.3 – 5V Encoder)

5202 Series Yellow Jacket Planetary Gear Motor (13.7:1 Ratio 435 RPM 3.3 – 5V Encoder)

European Costumers

You may also like…

1312 Series Double Sonic Hub (6mm D-Bore)

1400 Series 1-Side 2-Post Clamping Mount (32mm Bore)

1305 Series Thru-Hole Clamping Hub (32mm Bore)

1311 Series Thru-Hole Sonic Hub (6mm D-Bore)

Flexible Clamping Shaft Coupler (5mm Round Bore to 6mm Round Bore)

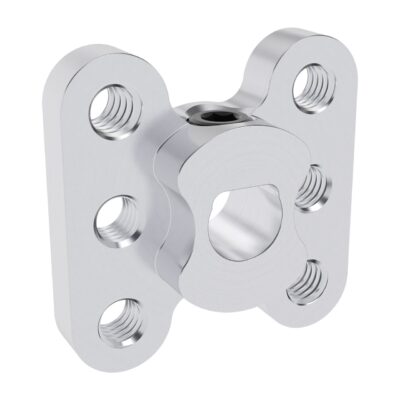

1308 Series Lightweight Set Screw Hub (6mm D-Bore)

Giunto con viti di serraggio (6mm a 8mm )

Giunto con viti di serraggio (4mm a 6mm )

4007 Series Hyper Coupler (6mm D-Bore to 6mm D-Bore)

1310 Series Hyper Hub (6mm D-Bore)

2-Pos JST VH [MH-FC] to 3.5mm Bullet [MH-FC] Adaptor (100mm Length)

Cavo breakout encoder (da 4 posizioni JST XH [MH-FC] a 4 x 1 posizione TJC8 [MH-FC] lunghezza 300mm)

1302 Series Clamping Hub (32mm Bore)

Giunto con viti di serraggio (5mm a 6mm )

3.5mm Bullet Extension (MH-FC to FH-MC 300mm Length)

3.5mm Bullet Lead (FH-MC 300mm Length)

3404 Series 3mm HTD Pitch Set Screw Pinion Timing Belt Pulley (6mm D-Bore 18 Tooth)

2800 Series Zinc-Plated Steel Socket Head Screw (M4 x 0.7mm 22mm Length) – 25 Pack

Cascading Kit for 1121 Series Low-Side U-Channel

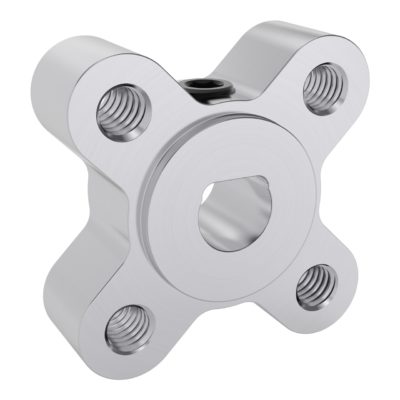

1300 Series Set Screw Hub (6mm D-Bore)
