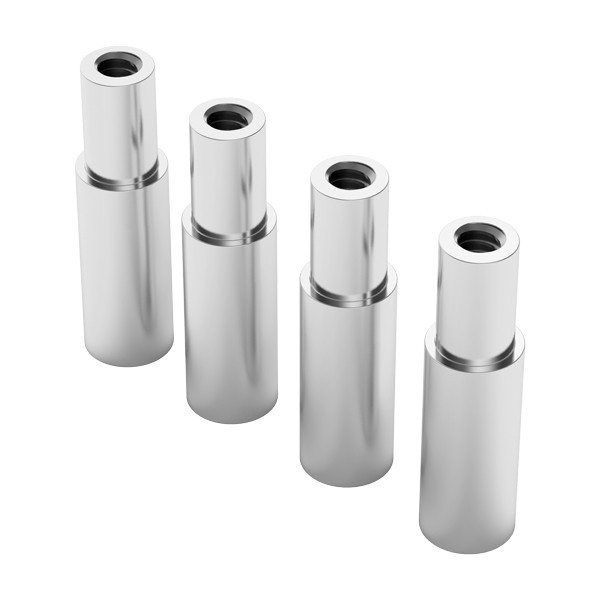

Mini V-Wheel Standoffs are intended to mount Mini V-Wheels to an Actobotics part that contains the 1.50" hub pattern. The standoffs are threaded (6-32) on each end - the large end should be used to attach the standoff to a #6 thru-hole on a channel or bracket. The small end is turned down so that the Mini V-Wheel will slide on and then a 6-32 x 5/16" button head screw will hold the wheel in place with minimal axial slack. When the Mini V-Wheel is installed onto a standoff the distance from the large end of the standoff to the center of the wheel is precisely 0.75" so that your build remains 'on pattern'. These standoffs are sold in packs of 4.
| Product Weight | 0.15 oz |
|---|---|
| Material | Aluminum |
| Outside Diameter | 5mm to 0.250" |
| Thread Size | 6-32 |
Drawings
