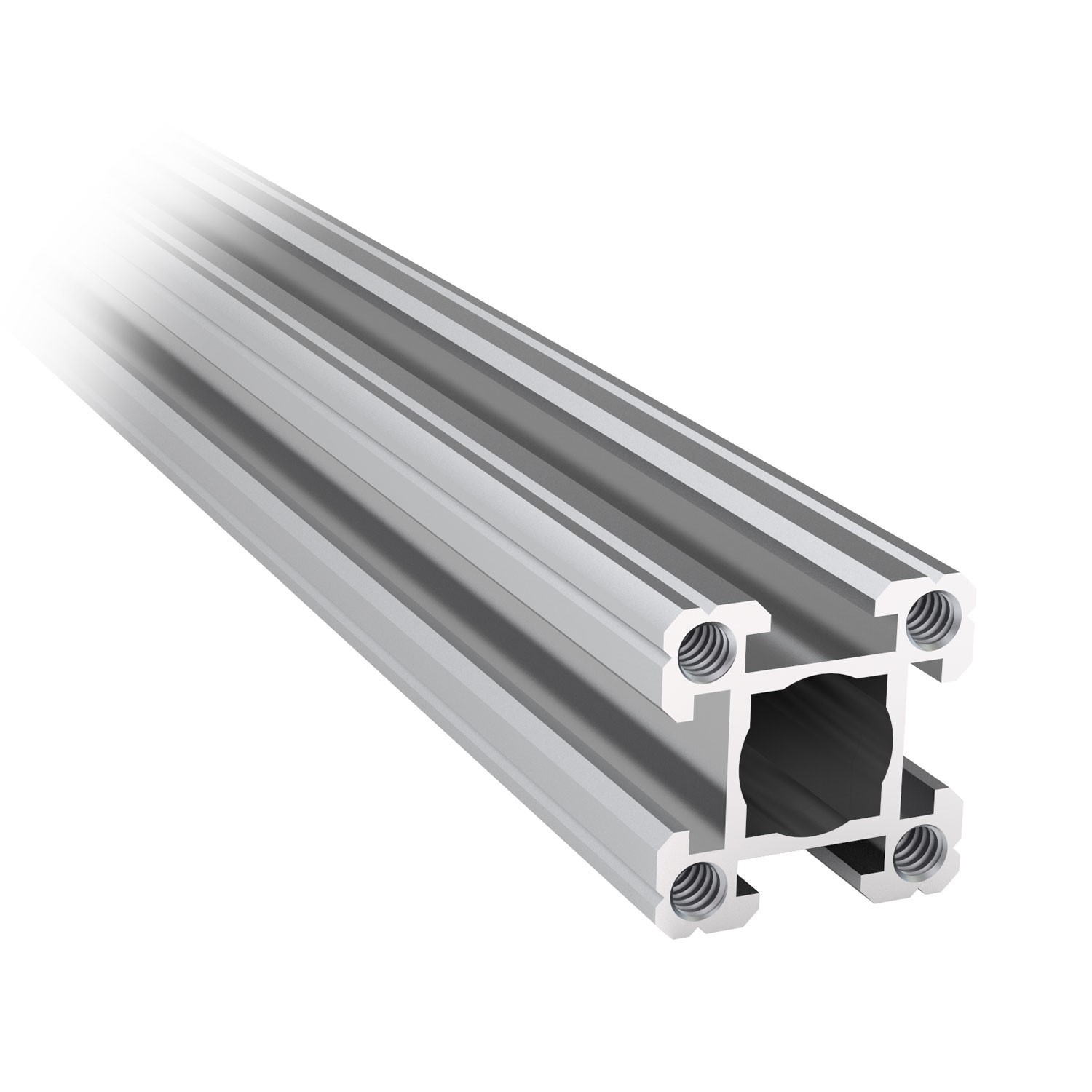

Actobotics® X-Rail

Actobotics® X-Rail

Clear
SKU: STEP-1565010 Category:

Description

The Actobotics X-Rail extrusion compliments the already extensive building system. The ‘X’ profile provides a slot in the center of each of the four sides to capture X-Rail Mounts and solidly fasten components anywhere along the rail. While that would exhaust the ingenuity of other brands of extrusion, the Actobotics X-Rail has other key features that increase the versatility. The corners have been radiused so that the X-rail has a 1″ diameter – this means you can install it into a 1″ bearing and use it as an axle or you can even use 1″ clamps to fasten components at any point along the rail and at any angle. The 3/8” bore can be used as a passage for shafting, threaded rod, or routing wires but it can also be used to locate a 3/8″ OD ball bearing in order to create a rotating assembly.  Dimensionally, the X-Rail is exactly half the size of the channel so that the geometry remains correct for expanding your assembly with additional Actobotics parts.

Additional information

Length

1.32, 1.50, 3, 3.75, 4.50, 6, 7.50, 9, 10.50, 12, 13.50, 15, 16.50, 18, 19.50, 21, 24, 36, 48

application

app1

[ac-sc id="20699"]
