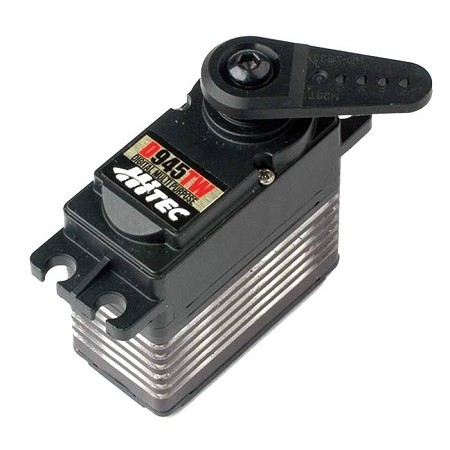

The titanium gear D-945TW is part of Hitec’s D-Series dynamo servo line. All Hitec D-Series servos have been designed using their cutting edge, custom engineering. Combining industry leading high-resolution, state-of-the-art ultra-response technology with a 32-bit MCU, and a 12-bit ADC for unprecedented programmability and flexibility. These servos deliver significantly smoother movement. The speedy, powerful line operates on a wide 4.8 ~ 8.4 voltage range, allowing use with any common battery chemistry without the need for adapters or regulators. Featuring Hitec’s industry standard 25-tooth output spline with an M3 pan head with a phillips drive style, each D-Series servo brings monster performance never known before in the market.
€187,16 (€153,41 + IVA)
| Dimensions | 1.57” x 0.79” x 1.50” (40 x 20 x 38mm) |
|---|---|
| Product Weight | 2.40oz (68g) |
| Output Shaft Style | 25 tooth (H25T) spline |
| Voltage Range | 4.8V - 8.4V |
| No-Load Speed (4.8V) | 0.16 sec/60° |
| No-Load Speed (6.0V) | 0.12 sec/60° |
| No-Load Speed (7.4V) | 0.10 sec/60° |
| Stall Torque (4.8V) | 194.42 oz/in. (14.0 kg.cm) |
| Stall Torque (6.0V) | 250.00 oz/in. (18.0 kg.cm) |
| Stall Torque (7.4V) | 319.40 oz/in. (23.0 kg.cm) |
| Max PWM Signal Range (Standard) | 750-2250μsec |
| Travel per µs (out of box) | .080°/μsec |
| Max Travel (out of box) | 120° |
| Pulse Amplitude | 3-5V |
| Operating Temperature | -20°C to +60°C |
| Continuous Rotation Modifiable | Yes |
| Direction w/ Increasing PWM Signal | Clockwise |
| Deadband Width | 2µs |
| Motor Type | Coreless |
| Feedback Style | 5KΩ Potentiometer |
| Output Shaft Support | Dual Ball Bearings |
| Gear Type | Straight Cut Spur |
| Gear Material | Titanium |
| Wire Length | 11.81" (300mm) |
