| Material | Aluminum |
|---|---|
| Shaft Mount Style | 10-32 Set Screw |
| Max Timing Belt Width | 0.375" (3/8) |
| Flange Diameter | 0.875" |
| Tooth Count | 10 |

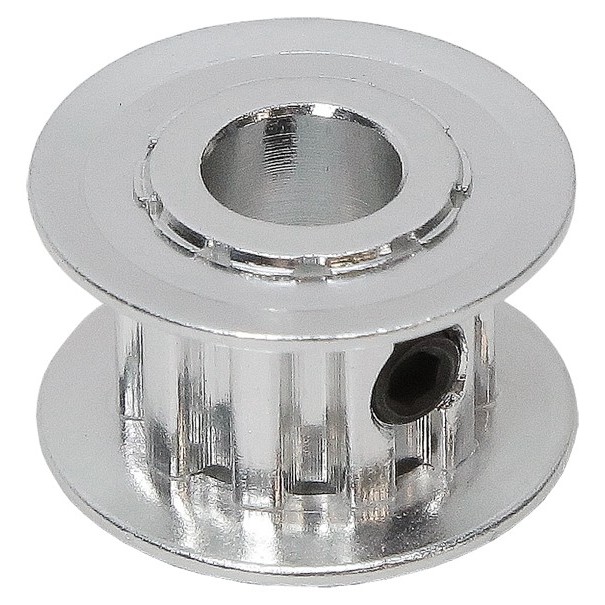

These 10 tooth pulleys are able to run inside of our aluminum Actobotics™ channel. The pulleys are .40” inside the flanges to allow for belts up to 3/8” in width. The pulley can be used for building pan and tilt systems, camera sliders, XY tables, robotic drive mechanisms, etc. Constructed of 6061 T6 aluminum.
The 6mm Bore XL Series (1/5 pitch) Pinion Pulleys can attach directly to any of our gear motors that have a 6mm output shaft. Simply slide the pulley onto the motor shaft and tighten the 10-32 set screw, using a 3/32 hex key. The 1/4” Bore pulleys can attach directly to our 1/4” shafts. The 4mm Bore pulley is compatible with our 4mm shafting or our Premium Planetary Gear Motors. The 5mm and 8mm bore pulleys are compatible with our metric shafting of the same size. Use these pulleys in conjunction with our XL series timing belt.
These pinion pulleys use a 3/32” Hex Key (sold separately).

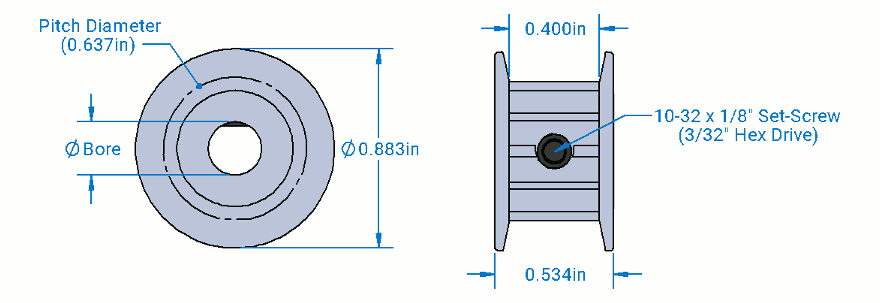

Drawings
