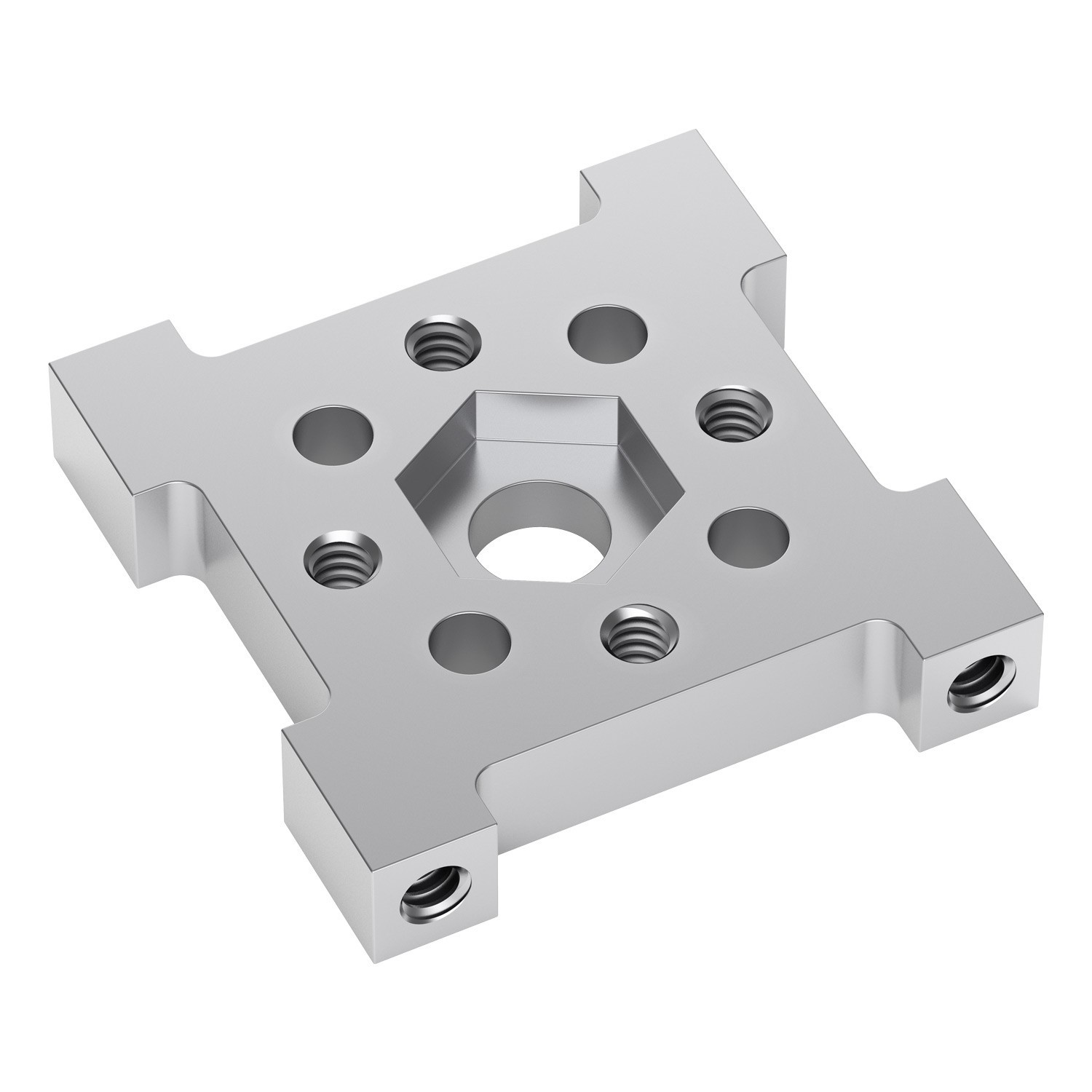

The new 90° Quad Hub Mount E enables a 1/4-20 bolt and nut to be used with channel and other components. Four holes are counter bored for 6-32 socket head cap screws while the remaining four holes are 6-32 tapped. Fig. 5 and 6 show how easy it is to mount a camera to our channel using 545452. 1/4-20 nut not included.
90° Quad Hub Mount E
Drawings
