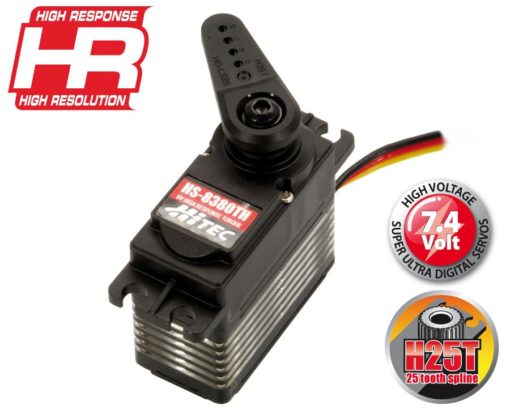

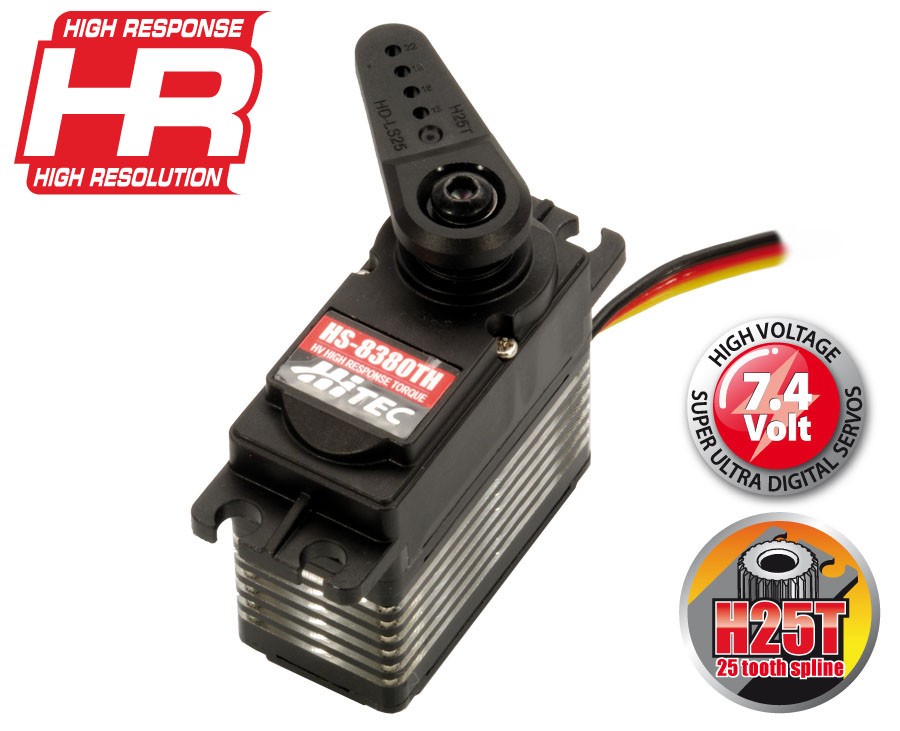

HS-8380TH HV 35 kg*cm - 0,13sec/60 deg
€108,10 (€88,61 + IVA)
HS-8380TH HV 35 kg*cm - 0,13sec/60 deg
| Performance Specifications | |
| Operating Voltage Range (Volts DC) | 4.8V ~ 6.0V |
| Speed (Second @ 60°) | 0.17 ~ 0.14 |
| Maximum Torque Range oz. / in. | 403 ~ 486 |
| Maximum Torque Range kg. / cm. | 29.0 ~ 35.0 |
| Current Draw at Idle | XX mAh |
| No Load Operating Current Draw | XXX mAh |
| Stall Current Draw | XXXX mAh |
| Dead Band Width | X µs |
| Physical Specifications | |
| Dimensions (Inches) | 1.57 x 0.79 x 1.50 |
| Dimensions (Metric) | 40.0 x 20.0 x 38.0 |
| Weight (Ounces) | 2.4 |
| Weight (Gram) | 68.0 |
| Circuit Type | HR Digital |
| Motor Type | Coreless Metal Brush |
| Gear Material | Titanium |
| Bearing Type | Dual Ball Bearing |
| Output Shaft (type / Ømm) | H25T |
| Case Material | XXXX |
| Dust / Water Resistance | N / A |
| Connector Gauge (AWG) / Strand Count | 20 / 80 |
