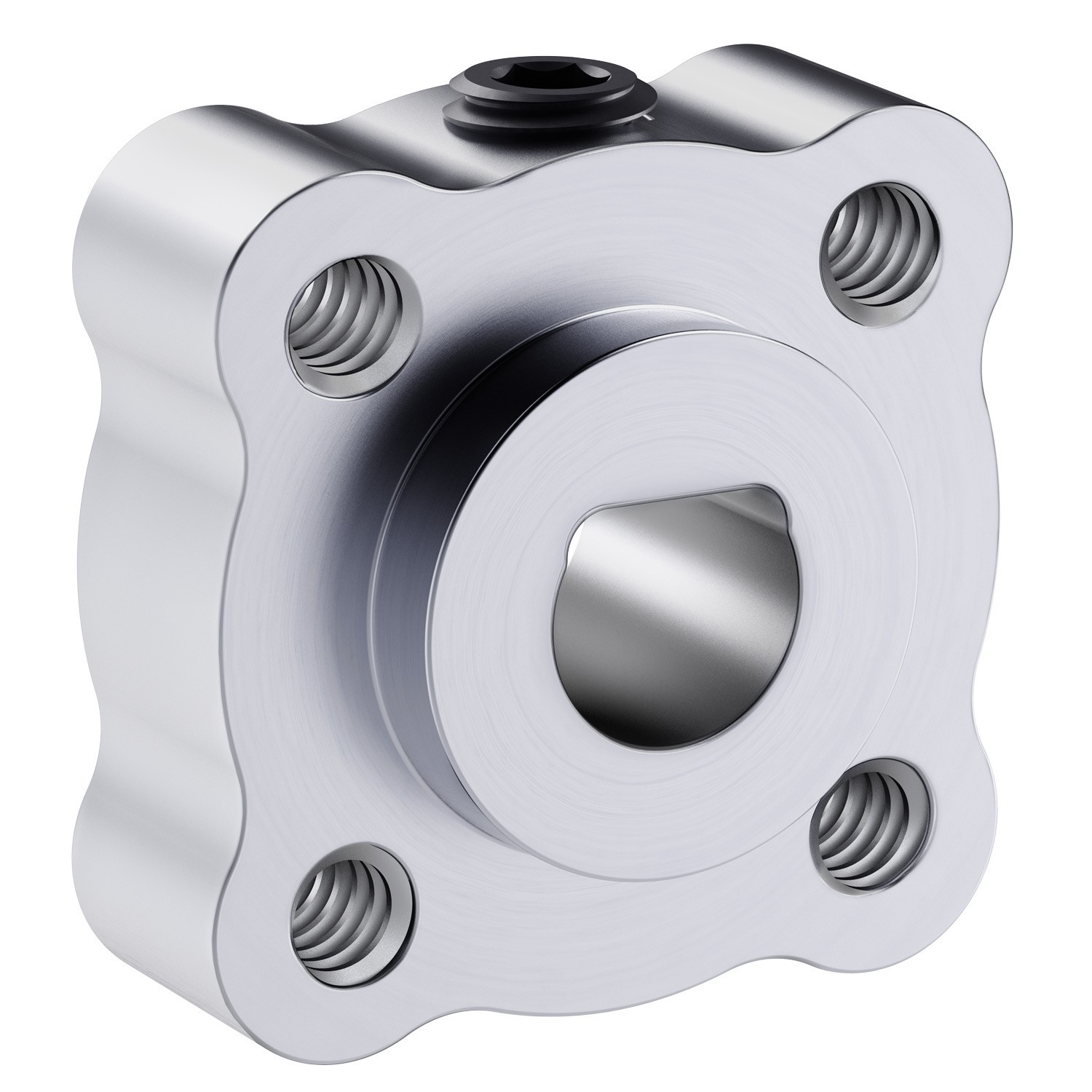

Set screw D-hubs (545579) are a fantastic solution for transferring power from a shaft to the hub. While conventional hubs with a cylindrical bore rely solely on the set screw to keep the hub from slipping on the shaft, the new D-hubs have a D-shaped bore to perfectly match a D-shaft of the same diameter.
| Material | Aluminum |
|---|---|
| Coupling Style | Set-Screw |
| Hole Pattern | 0.770" |

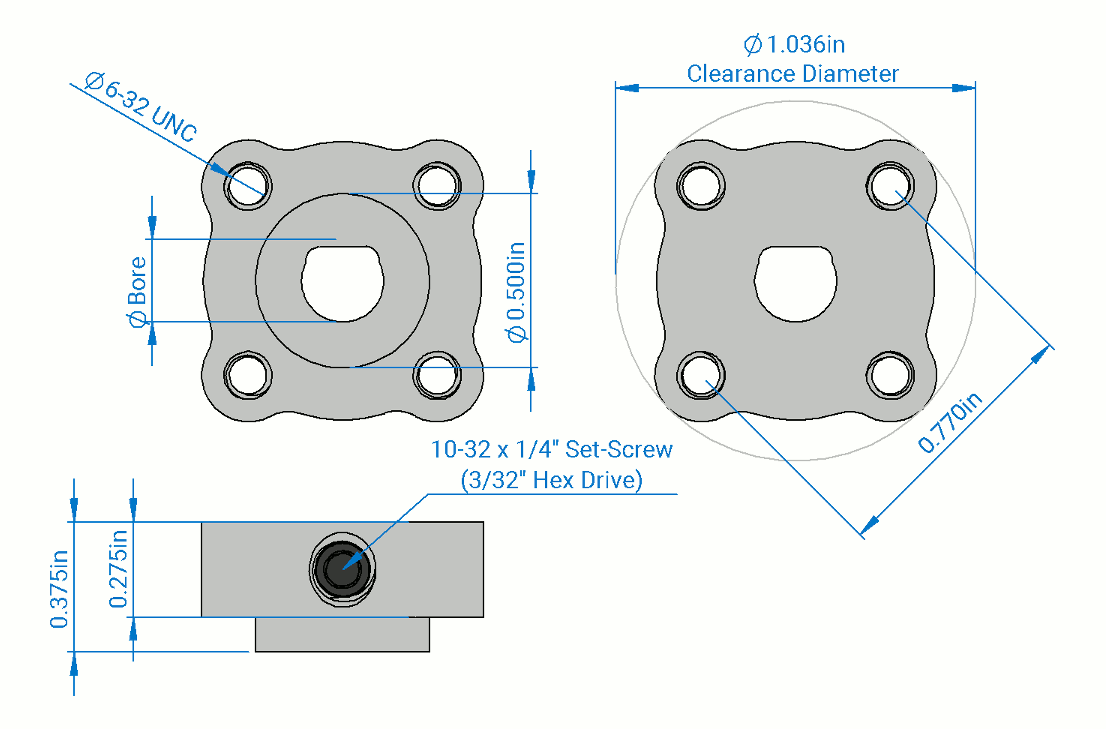

Drawings
