This ball-bearing v-wheel kit works in conjunction with 80/20® (1010 series) as well as our own X-Rail to create smooth linear motion. The Acetyl construction of the V-Wheels offers high durability and wear resistance. The internal ball bearing has an ID of 5mm and the overall v-wheel diameter is 0.60”. Four 5mm to 1/4” tapped standoffs are included to make it easy to attach the V-Wheel to channel or other Actobotics® components. The 0.675” standoff length makes it ideal for more compact projects.

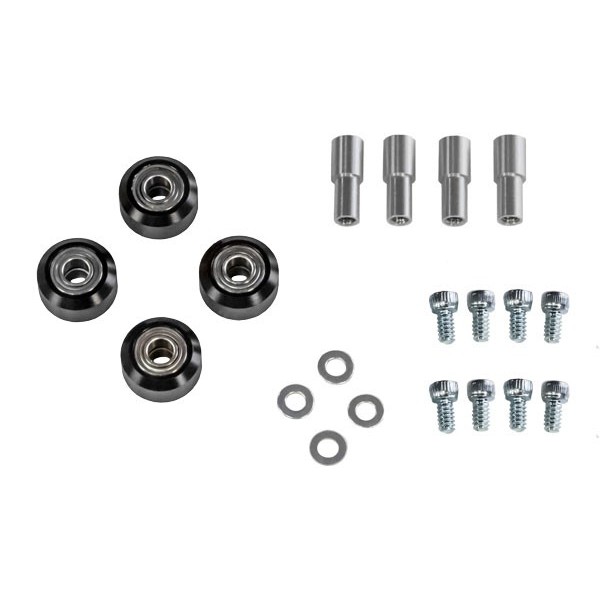

Kit includes:
(4) Ball-bearing V-Wheels
(4) Standoffs
(4) #6 Washers
(8) 6-32 x 1/4” socket head cap screws
Drawings
