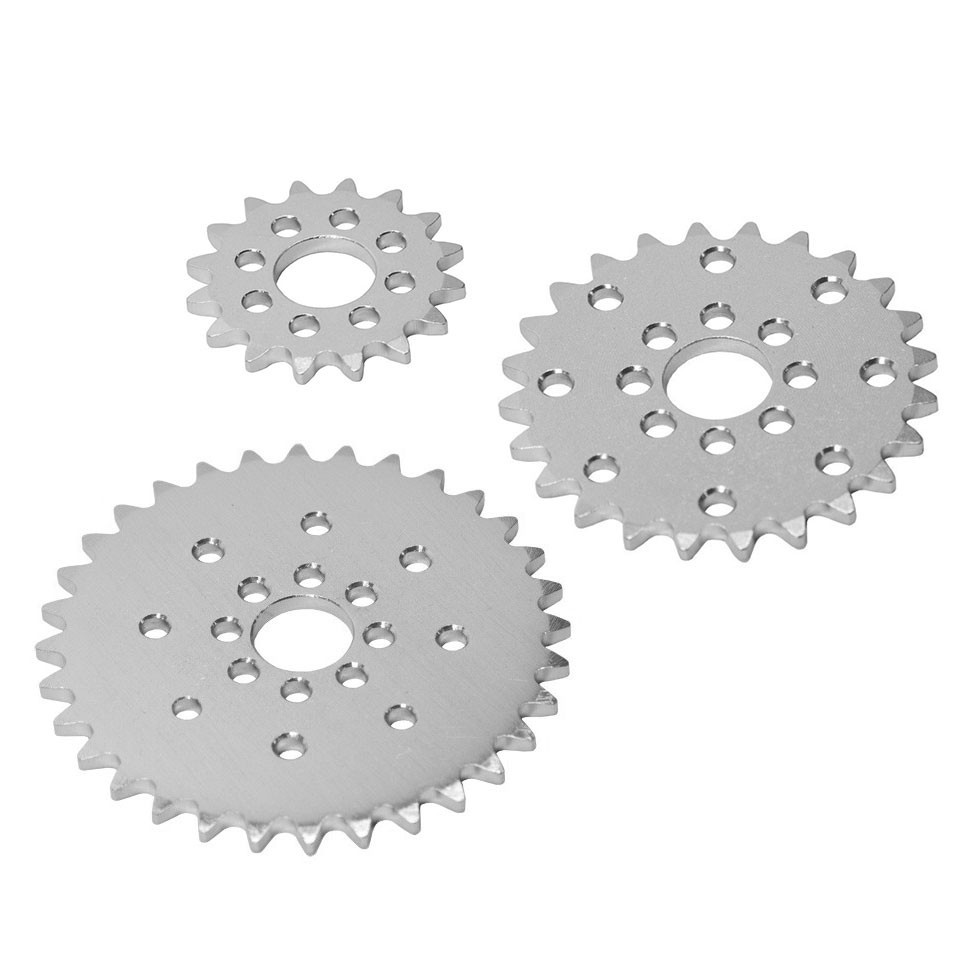

Our aluminum hub sprockets are extremely strong and lightweight. They are 0.100” thick and accept standard 0.250” pitch metal or plastic chain. They also work well with our aluminum hubs.
| Tooth | Part # | P.D. | O.D. | Weight |
|---|---|---|---|---|
| 16T | 615102 | 1.282” | 1.407” | .10oz. |
| 24T | 615106 | 1.955” | 2.049” | .40oz. |
| 32T | 615114 | 2.551” | 2.688” | .70oz. |
| Material | Aluminum |
|---|---|
| Bore | 0.500" (1/2") |
Drawings
