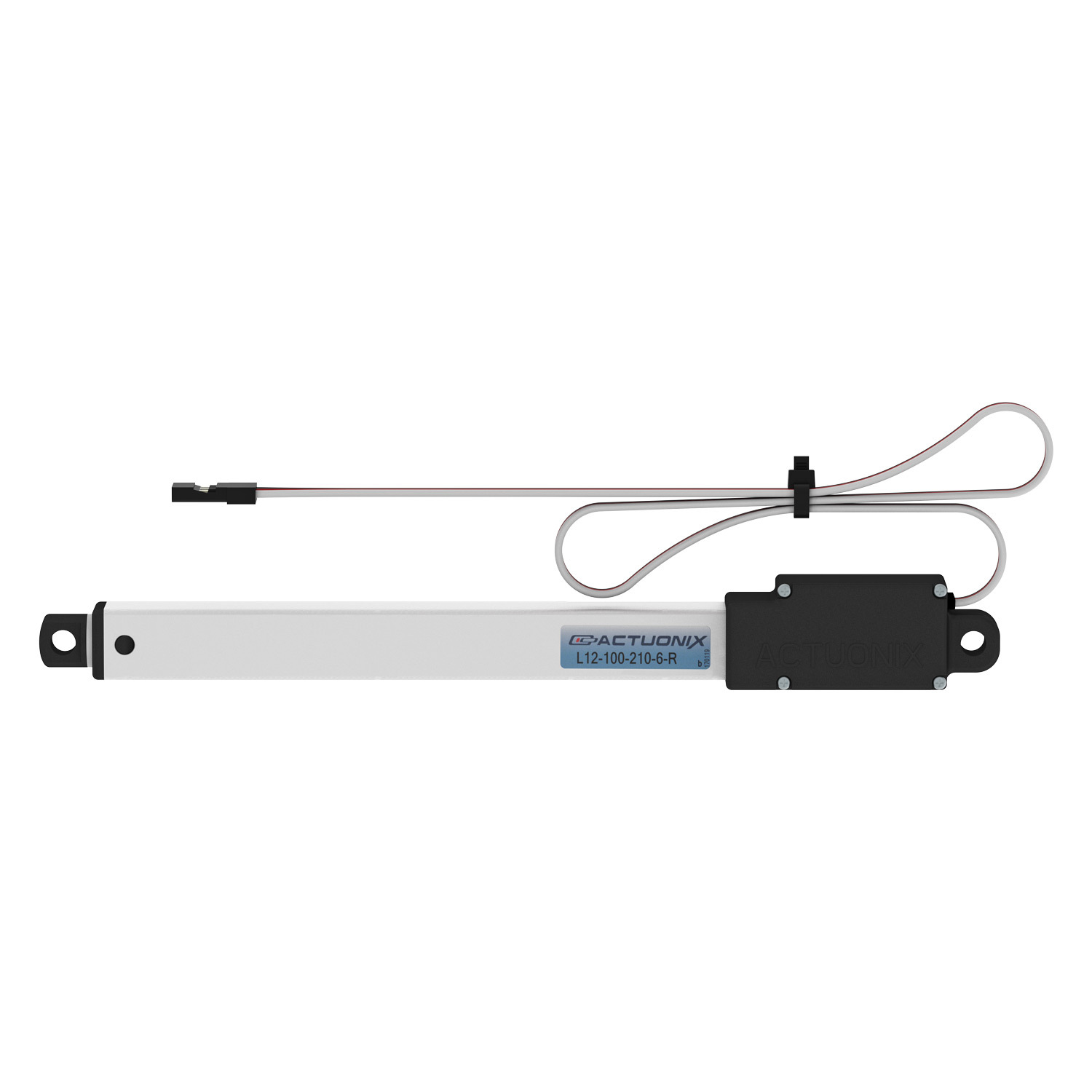

100 mm Stroke 17 lb Thrust Light Duty Linear Servo

Category:

126,26 (103,49 + IVA)

Stroke 3.9"
Pulse Amplitude 3 - 5 V
Operating Temperature -10°C ~ +50°C
Motor Type Brushed DC
Feedback Style 11 KΩ / inch
Wire Length 300 mm
Weight 2.45 oz
Wire Gauge 26 AWG
Voltage Range (Recommended) 4.5V - 7.5V
Speed (No Load)* 6.5 mm per second
Connector Type Male Servo Connector
Gear Ratio 210:1
Dynamic Thrust* 80 N
Static Load 200 N powered on, 45 N powered off
Current Drain (No-Load)* 7.2 mA
Current Drain (Stall)* 460 mA
IP Rating IP54
Duty Cycle 20%
Potentiometer Linearity Less than 2.00%
