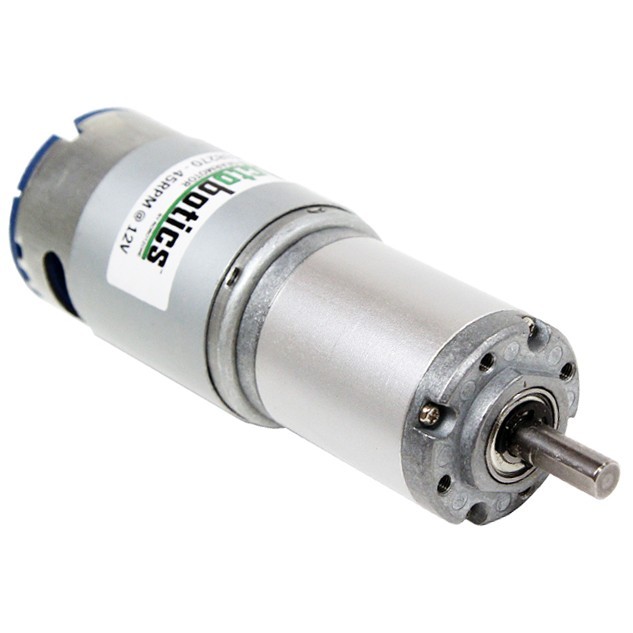

16 RPM HD Premium Planetary Gear Motor

42,94 (35,20+iva)

16 RPM HD Premium Planetary Gear Motor

In stock

SKU: 638264 Categories: , Tag:


Voltage (Nominal) 12
Voltage Range (Recommended) 6V – 12V
Speed (No Load)* 16 rpm
Current (No Load)* 0.54A
Current (Stall)* 20A
Torque (Stall)* 5,804.9 oz-in (418 kgf-cm)
Gear Ratio 516:1
Gear Material Metal
Gearbox Style Planetary
Motor Type DC
Motor Brush Type Graphite
Output Shaft Diameter 6mm (0.236”)
Output Shaft Style D-shaft
Output Shaft Support Dual Ball Bearings
Electrical Connection Male Spade Terminal
Operating Temperature -10°C ~ +60°C
Mounting Screw Size M3 x 0.5mm
Product Weight 380g (13.4oz)
