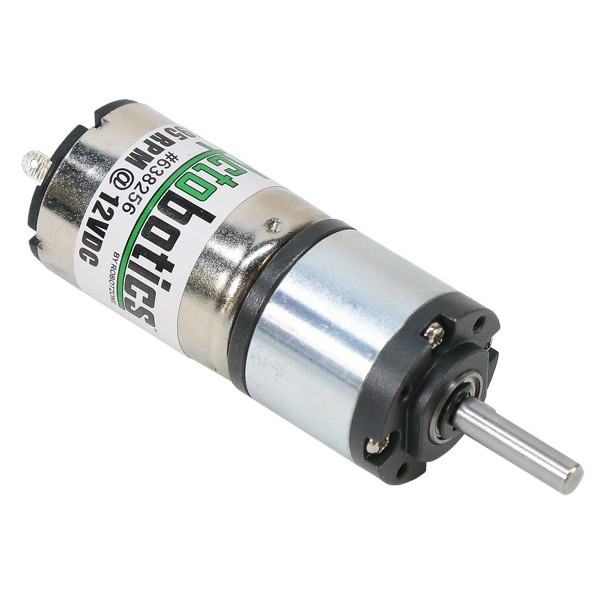

195 RPM Premium Planetary Gear Motor
€42,08 (€34,49 + IVA)
| Voltage (Nominal) | 12V |
|---|---|
| Voltage Range (Recommended) | 3V - 12V |
| Speed (No Load)* | 195 rpm |
| Current (No Load)* | 0.20A |
| Current (Stall)* | 4.9A |
| Torque (Stall)* | 94.4 oz-in (6.8 kgf-cm) |
| Gear Ratio | 62:1 |
| Gear Material | Metal |
| Gearbox Style | Planetary |
| Motor Type | DC |
| Output Shaft Diameter | 4mm (0.1575") |
| Output Shaft Style | D-shaft |
| Output Shaft Support | Dual Ball Bearing |
| Electrical Connection | Male Spade Terminal |
| Operating Temperature | -10 ~ +60°C |
| Mounting Screw Size | M2 x 0.4mm |
| Product Weight | 92g (3.23oz) |
