26 RPM Premium Planetary Gear Motor

SKU: 638242 Category: premium planetary

26 RPM Premium Planetary Gear Motor

26 RPM Premium Planetary Gear Motor

€40,25 (€32,99 + IVA)

Out of stock

Voltage (Nominal)	12V
Voltage Range (Recommended)	3V - 12V
Speed (No Load)*	26 rpm
Current (No Load)*	0.21A
Current (Stall)*	4.9A
Torque (Stall)*	583 oz-in (42 kgf-cm)
Gear Ratio	455:1
Gear Material	Metal
Gearbox Style	Planetary
Motor Type	DC

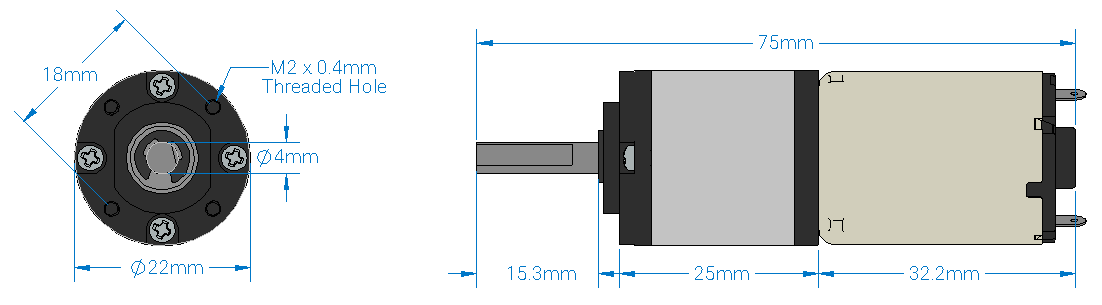

Output Shaft Diameter	4mm (0.1575”)
Output Shaft Style	D-shaft
Output Shaft Support	Dual Ball Bearing
Electrical Connection	Male Spade Terminal
Operating Temperature	-10°C ~ +60°C
Mounting Screw Size	M2 x 0.4mm
Product Weight	100g (3.53oz)
