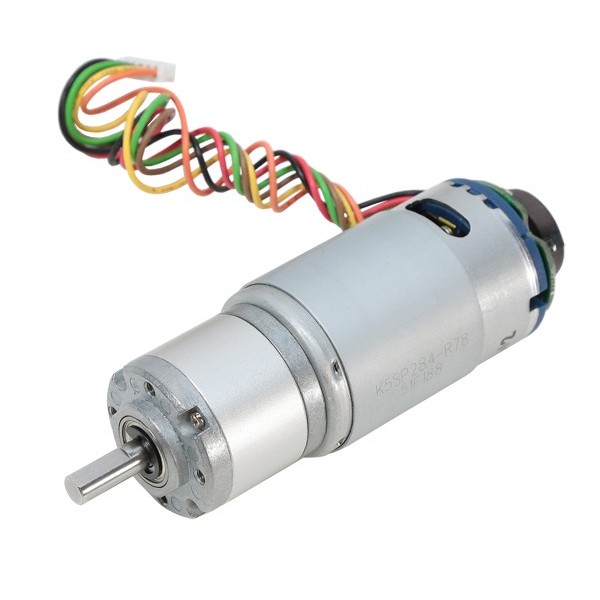

313 RPM HD Premium Planetary Gear Motor w/Encoder

84,17 (68,99 + IVA)

SKU: 638328 Categories: , Tags: ,
Checking...
Voltage (Nominal) 12V
Voltage Range (Recommended) 6V - 12V
Speed (No Load)* 313 rpm
Current (No Load)* 0.52A
Current (Stall)* 20A
Torque (Stall)* 416.6 oz-in (30 kgf-cm)
Gear Ratio 26.851:1
Gear Material brass primary, nylon secondary, steel tertiary
Gearbox Style Planetary
Motor Type DC
Motor Brush Type Graphite
Output Shaft Diameter 6mm (0.236”)
Output Shaft Style D-shaft
Output Shaft Support Dual Ball Bearings
Electrical Connection PH Series JST 6-pin Connector (2mm Pitch)
Operating Temperature -10°C ~ +60°C
Mounting Screw Size M3 x 0.5mm
Product Weight 330g (11.64oz)
Encoder: Cycles Per Revolution (Motor Shaft) 12
Encoder: Cycles Per Revolution (Output Shaft) 322.212
Encoder: Countable Events Per Revolution (Motor Shaft) 48
Encoder: Countable Events Per Revolution (Output Shaft) 1,288.848
Encoder Type Relative, Quadrature
Encoder Sensor Type Magnetic (Hall Effect)
Encoder Sensor Input Voltage Range 2.4 - 26V
Encoder Sensor Output Pulse Amplitude ~= Sensor Input Voltage
