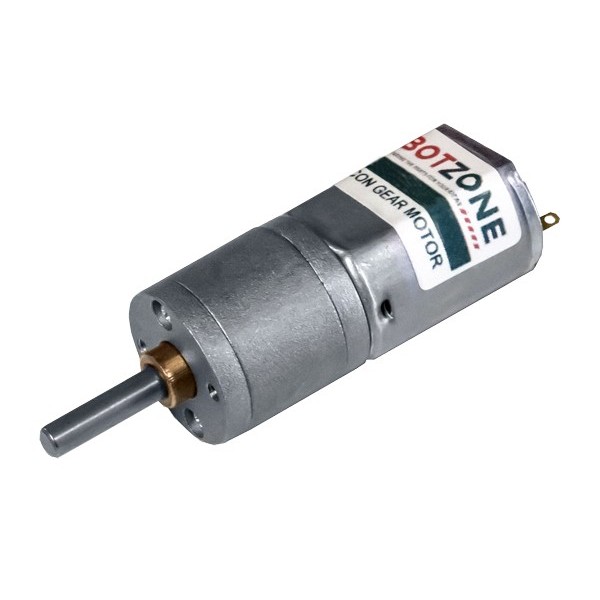

51 RPM Mini Econ Gear Motor (638386)
€17,91 (€14,68 + IVA)
Checking...
- Spese di spedizione / Shipping cost
- Taxes if you live outside Italy (read more…)
- Products are shipped worldwide
51 RPM Mini Econ Gear Motor (638386)
€17,91 (€14,68 + IVA)
Checking...
European Costumers
| Voltage (Nominal) | 12V |
|---|---|
| Voltage Range (Recommended) | 6V -18V |
| Speed (No Load)* | 51 rpm |
| Current (No Load)* | 0.1A |
| Current (Max Load)* | 0.35A |
| Current (Stall)* | 1.5A |
| Torque (Stall)* | 24 kgf-cm |
| Gear Ratio | 250:1 |
| Gear Material | Metal |
| Gearbox Style | Straight Cut Spur |
| Motor Type | Brushed DC |
| Output Shaft Diameter | 4mm (0.1575”) |
| Output Shaft Style | D-shaft |
| Output Shaft Support | Bushing |
| Electrical Connection | Male Spade Terminal |
| Product Weight | 47g |
You may also like…
-
Set Screw Shaft Couplers 5mm – 4mm
€7,02 (€5,75 + IVA) -

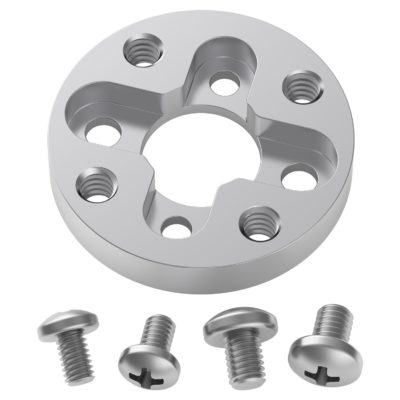

Aluminum Motor Mount F 555104
