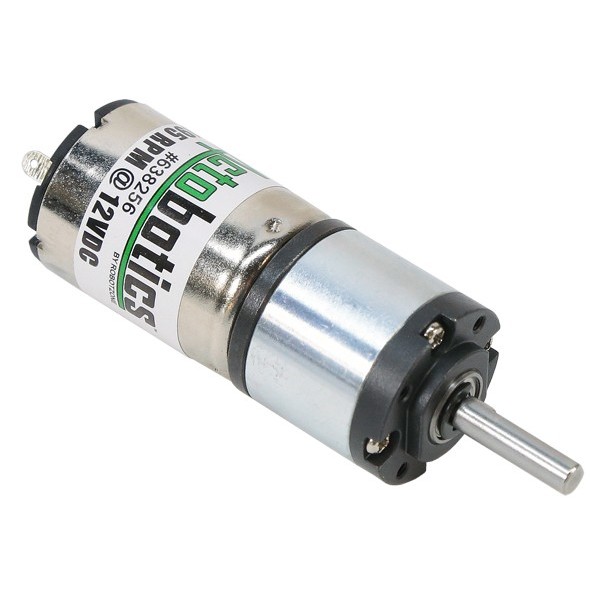

520 RPM Premium Planetary Gear Motor
€40,25 (€32,99 + IVA)
| Voltage (Nominal) | 12V |
|---|---|
| Voltage Range (Recommended) | 3V - 12V |
| Speed (No Load)* | 520 rpm |
| Current (No Load)* | 0.16A |
| Current (Stall)* | 4.6A |
| Torque (Stall)* | 40.27 oz-in (2.9 kgf-cm) |
| Gear Ratio | 19:1 |
| Gear Material | Metal |
| Gearbox Style | Planetary |
| Motor Type | DC |
| Output Shaft Diameter | 4mm (0.1575") |
| Output Shaft Style | D-shaft |
| Output Shaft Support | Dual Ball Bearing |
| Electrical Connection | Male Spade Terminal |
| Operating Temperature | -10 ~ +60°C |
| Product Weight | M2 x 0.4mm |
