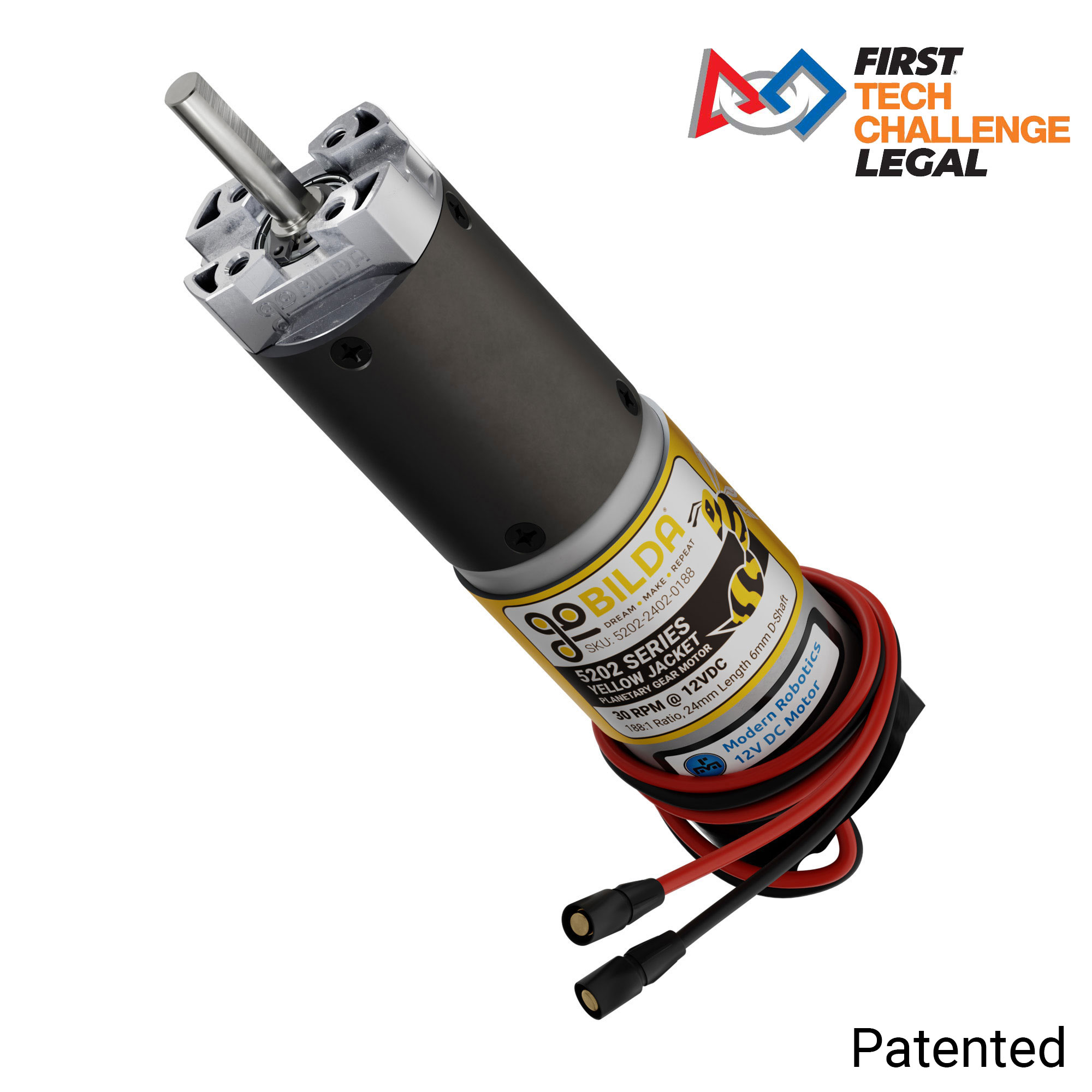

5202 Series Yellow Jacket Planetary Gear Motor (188:1 Ratio 30 RPM 3.3 - 5V Encoder)

SKU: 5202-2402-0188 Category:
Motor Size RS-555
Motor Type Brushed DC
Nominal Voltage 12VDC
Output Shaft 6mm D
Gearbox Style Planetary
Gear Ratio 188:1
Gear Material Casing: Steel Ring Gear
Stage 1: Steel Gear, Acetal Orbital Gears
Stage 2: Steel Sun Gear, Steel Orbital Gears
Stage 3: Steel Sun Gear, Steel Orbital Gears
Stage 4: Steel Sun Gear, Steel Orbital Gears
No-Load Speed @ 12VDC 30 RPM
No-Load Current @12VDC 0.25A
Stall Current @12VDC 9.2A
Stall Torque @12VDC 250 kg.cm (3,470 oz-in)
Wire Length 470mm (including connectors)
Wire Gauge 16AWG
Motor Connector Type 3.5mm FH-MC Bullet Connectors
Encoder Connector Type 4-Pos JST XH [FH-MC]
Encoder Type Relative, Quadrature
Encoder Sensor Type Magnetic (Hall Effect)
Encoder Voltage Range 3.3 - 5VDC
Encoder Cycles
Per Revolution
(Encoder Shaft)
7 (Rises of Ch A)
Encoder Cycles
Per Revolution
(Output Shaft)
1,316 (Rises of Ch A)
Encoder Countable Events
Per Revolution
(Encoder Shaft)
28 (Rises & Falls of Ch A & B)
Encoder Countable Events
Per Revolution
(Output Shaft)
5,264 (Rises & Falls of Ch A & B)
Weight 495g

56,11 (45,99 + IVA)
