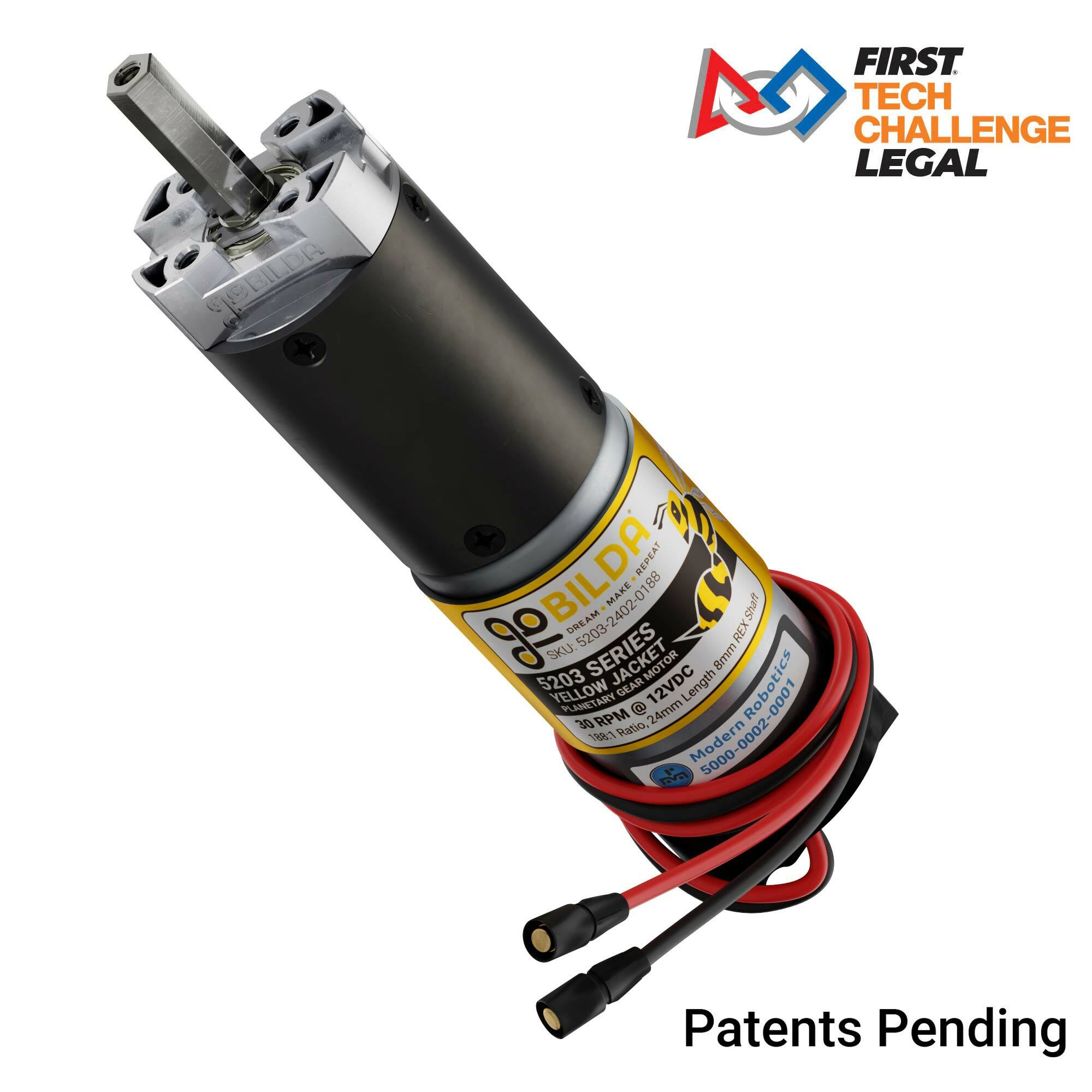

5203 Series Yellow Jacket Planetary Gear Motor (188:1 Ratio, 24mm Length 8mm REX Shaft, 30 RPM, 3.3 – 5V Encoder)

70,56 (57,84 + IVA)

Checking...

SKU: 5203-2402-0188 Category:

5203 Series Yellow Jacket Planetary Gear Motor (188:1 Ratio, 24mm Length 8mm REX Shaft, 30 RPM, 3.3 – 5V Encoder)

70,56 (57,84 + IVA)

Checking...

SKU: 5203-2402-0188 Category:

European Costumers

Motor Size RS-555
Motor Type Brushed DC
Nominal Voltage 12VDC
Output Shaft 8mm REX, 24mm Length
Gearbox Style Planetary
Gear Ratio 188:1
Gear Material Steel
No-Load Speed @ 12VDC 30 RPM
No-Load Current @12VDC 0.25A
Stall Current @12VDC 9.2A
Stall Torque @12VDC 250 kg.cm (3,470 oz-in)
Wire Length 470mm (including connectors)
Wire Gauge 16AWG
Motor Connector Type 3.5mm FH-MC Bullet Connectors
Encoder Connector Type 4-Pos JST XH [FH-MC]
Encoder Type Relative, Quadrature
Encoder Sensor Type Magnetic (Hall Effect)
Encoder Voltage Range 3.3 – 5VDC
Encoder Resolution 5,264 PPR at the Output Shaft
Weight 528g
IP Patents Pending
