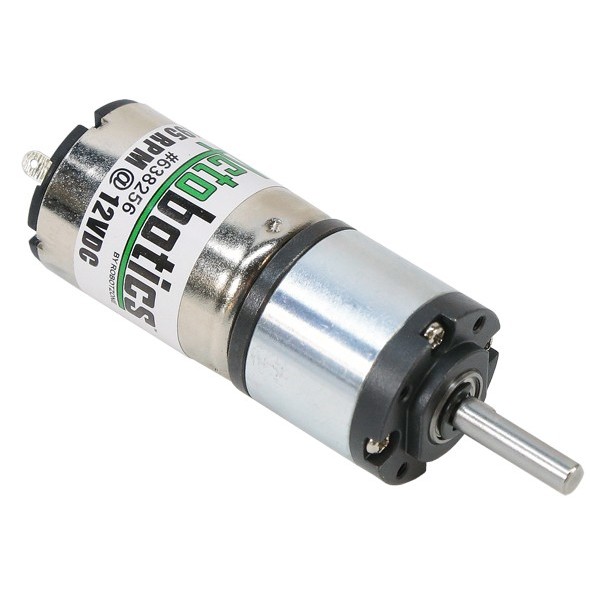

624 RPM Premium Planetary Gear Motor

SKU: 638258 Category:

624 RPM Premium Planetary Gear Motor

40,25 (32,99 + IVA)

Out of stock

Voltage (Nominal) 12V
Voltage Range (Recommended) 3V - 12V
Speed (No Load)* 520 rpm
Current (No Load)* 0.19A
Current (Stall)* 4.9A
Torque (Stall)* 41.7 oz-in (3 kgf-cm)
Gear Ratio 19:1
Gear Material Metal
Gearbox Style Planetary
Motor Type DC
Output Shaft Diameter 4mm (0.1575")
Output Shaft Style D-shaft
Output Shaft Support Dual Ball Bearing
Electrical Connection Male Spade Terminal
Operating Temperature -10 ~ +60°C
Mounting Screw Size M2 x 0.4mm
Product Weight 82g (2.89oz)
