Product Weight | 0.90 oz |
---|---|
Material | Bronze |
Lead Pitch | 2mm |
Number of Threads | 6.35 |
Number of Starts | 4 |
Outside Diameter | 1" |
Inside Diameter | 8mm |
Length | 0.50" |
Hole Pattern | 0.770" |

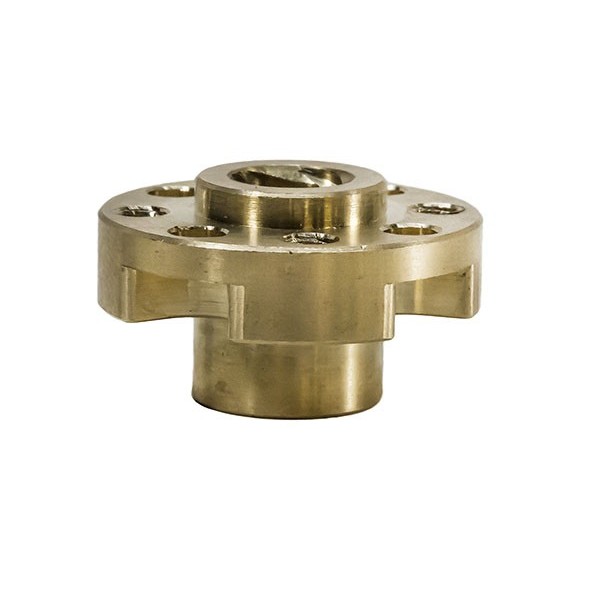

The 8mm lead screw nut with the .770" pattern is intended to be used with our 8mm lead screw. The threads are precisely cut to provide minimal backlash while retaining a low coefficient of friction between the bronze nut and the stainless lead screw. The .770" pattern provides a simple way to attach our components to your linear drive system, or if you want a clamping solution to easily index the nut you can use a 1" clamping hub around the outer diameter of the lead screw nut.
