Accelerometer
- 3-axis accelerometer
- 0.001g steps with 16bit resolution
- Up to ±16g full-scale range
- Full 1kHz data rate with callbacks
€12,97 (€10,63 + IVA)
Checking...
Add to wishlistAlready In Wishlist
Add to wishlist
- Spese di spedizione / Shipping cost
- Taxes if you live outside Italy (read more…)
- Products are shipped worldwide
- 3-axis accelerometer
- 0.001g steps with 16bit resolution
- Up to ±16g full-scale range
- Full 1kHz data rate with callbacks
European Costumers
Features
- 3-axis accelerometer
- 0.001g steps with 16bit resolution
- Up to ±16g full-scale range
- Full 1kHz data rate with callbacks
Description

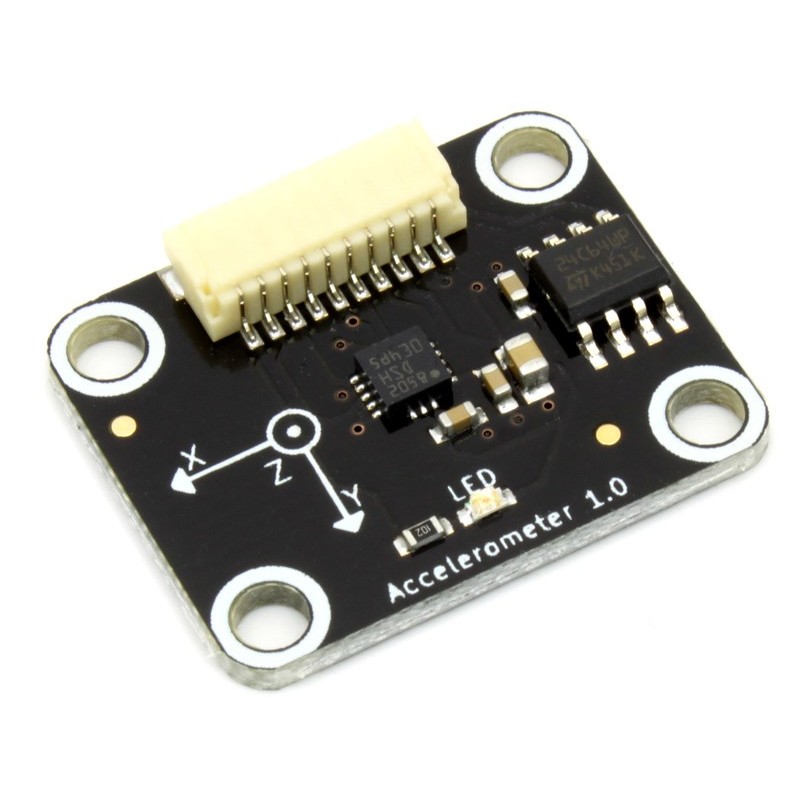

The Accelerometer Bricklet can be used to extend the features of Bricks with the capability to measure acceleration in x-, y- and z-axis. The measured acceleration can be read out in g. With configurable events it is possible to react on changing acceleration without polling.
The Bricklet has an LED that can be turned on trough the API, e.g. to show that a specific acceleration was reached.
Technical Specifications
| Property | Value |
|---|---|
| Sensor | LIS3DSH |
| Current Consumption | 5mW (1mA at 5V) |
| Acceleration | 0.001g steps, 16bit resolution |
| Shock survivability | 10000g |
| Full-scale range | ±2g / ±4g / ±6g / ±8g / ±16g selectable with API |
| Dimensions (W x D x H) | 25 x 20 x 5mm (0.98 x 0.79 x 0.19″) |
| Weight | 2g |
