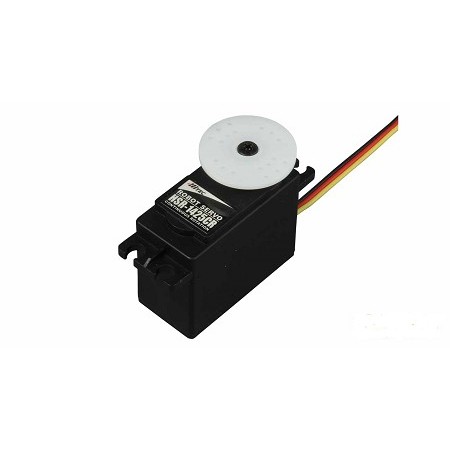

Hitec HSR-1425CR Servo continuous rotation

The HSR-1425CR is the continuous rotation version of the HS-425HB.  The speed is proportional meaning that the further the PWM signal deviates from the idle signal (approximately 1500usec) the faster the servo will rotate.  If you're looking for the smoothest continuous rotation servo, be sure to check out the HSR-2645CR servo.

32,27 (26,45 + IVA)

SKU: HSR-1425CR Category:
Dimensions 1.59" x 0.77"x 1.44" (40.6 x 19.8 x 36.6mm)
Product Weight 1.47oz (41.7g)
Output Shaft Style 24 tooth (C1) spline
Voltage Range 4.8V - 6.0V
No-Load Speed (4.8V) 44 rpm
No-Load Speed (6.0V) 52 rpm
Stall Torque (4.8V) 38.8 oz-in (2.8 kg-cm)
Stall Torque (6.0V) 42 oz-in (3.1 kg-cm)
Pulse Amplitude 3-5V
Operating Temperature -20°C to +60°C
Current Drain - idle (4.8V) 3mA
Current Drain - idle (6.0V) 3mA
Continuous Rotation Modifiable Completed (stock)
Direction w/ Increasing PWM Signal Clockwise
Motor Type Brushed
Potentiometer Drive No Potentiometer
Feedback Style This servo does not have position feedback
Output Shaft Support Dual Ball Bearing MR106
Gear Type Straight Cut Spur
Gear Material Nylon
Wire Length 7" (178mm)
Wire Gauge 25AWG
