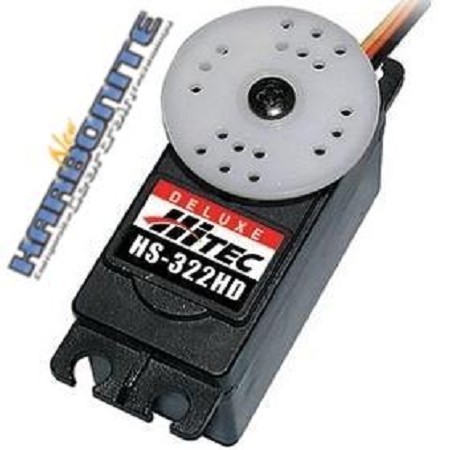

HS-322HD Servo Hitec

SKU: hs322hd Category:

The HS-322HD Standard Heavy Duty Servo utilizes Hitec’s revolutionary Karbonite™ gear train which is four times stronger than our standard white nylon gears, and even after hundreds of thousands of cycles they don’t show any signs of wear. Karbonite™ gears and Hitec's custom IC make the HS-322HD a great choice for an economical sport servo.

24,72 (20,26 + IVA)

Dimensions 1.57" x 0.78" x 1.43" (39.88 x 19.81 x 36.32mm)
Product Weight 1.52oz (43g)
Output Shaft Style 24 tooth (C1) spline
Voltage Range 4.8V - 6.0V
No-Load Speed (4.8V) 0.19sec/60°
No-Load Speed (6.0V) 0.15sec/60°
Stall Torque (4.8V) 42 oz/in (3.0 kg/cm)
Stall Torque (6.0V) 51 oz/in (3.7 kg/cm)
Max PWM Signal Range (Standard) 553-2450μsec
Travel per µs (out of box) .106°/μsec
Max Travel (out of box) 201°
Pulse Amplitude 3-5V
Operating Temperature -20°C to +60°C
Current Drain - idle (4.8V) 7.4mA
Current Drain - idle (6.0V) 7.7mA
Current Drain - no-load (4.8V) 160mA
Current Drain - no-load (6V) 180mA
Continuous Rotation Modifiable Yes
Direction w/ Increasing PWM Signal Clockwise
Deadband Width 5µs
Motor Type Cored Metal Brush
Potentiometer Drive 4 Slider/Direct Drive
Feedback Style 5KΩ Potentiometer
Output Shaft Support Top Resin Bushing
Gear Type Straight Cut Spur
Gear Material Karbonite
Wire Length 11.81" (300mm)
Wire Gauge 25AWG
