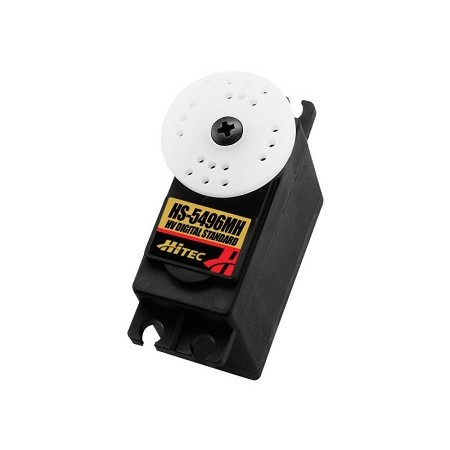

At Hitec, they believe in developing the highest quality servos in the market at an affordable price. That philosophy stands true with the economical HS-5496MH metal gear digital sport servo. Based on the popular HS-5485HB, the HS-5496MH is the perfect match for match for sport airplanes up to 25% scale as well as sport cars and trucks. With 7.4 volt, 2-cell LiPo battery capability, The HS-5496MH delivers the power you need at a price you can feel good about!
Dimensions | 1.57" x 0.78" x 1.49" (39.8 x 19.8 x 38 mm) |
---|---|
Product Weight | 1.84oz (52g) |
Output Shaft Style | 24 tooth (C1) spline |
Voltage Range | 6.0V - 7.4V |
No-Load Speed (6.0V) | 0.17sec/60° |
No-Load Speed (7.4V) | 0.15sec/60° |
Stall Torque (6.0V) | 88.8 oz/in. (6.4kg.cm) |
Stall Torque (7.4V) | 104.2 oz/in. (7.5kg.cm) |
Max PWM Signal Range (Standard) | 750-2250μsec |
Travel per µs (out of box) | .078°/μsec |
Travel per µs (reprogrammed normal res) | .133°/μsec |
Max Travel (out of box) | 117.5° |
Max Travel (reprogrammed normal res) | 200° |
Pulse Amplitude | 3-5V |
Operating Temperature | -20°C to +60°C |
Current Drain - idle (6.0V) | 10mA |
Current Drain - idle (7.4V) | 12mA |
Current Drain - no-load (6V) | 170mA |
Current Drain - no-load (7.4V) | 190mA |
Current Drain - stall (6V) | 1200mA |
Current Drain - stall (7.4V) | 1400mA |
Continuous Rotation Modifiable | Yes |
Direction w/ Increasing PWM Signal | Clockwise |
Deadband Width | 4µs |
Motor Type | Cored Metal Brush |
Potentiometer Drive | 2-Slider, Direct Drive |
Feedback Style | 5KΩ Potentiometer |
Output Shaft Support | Dual Ball Bearings |
Gear Type | Straight Cut Spur |
Gear Material | 1 Resin, 3 Metal Gears |
Wire Length | 11.81" (300mm) |
Wire Gauge | 25AWG |
