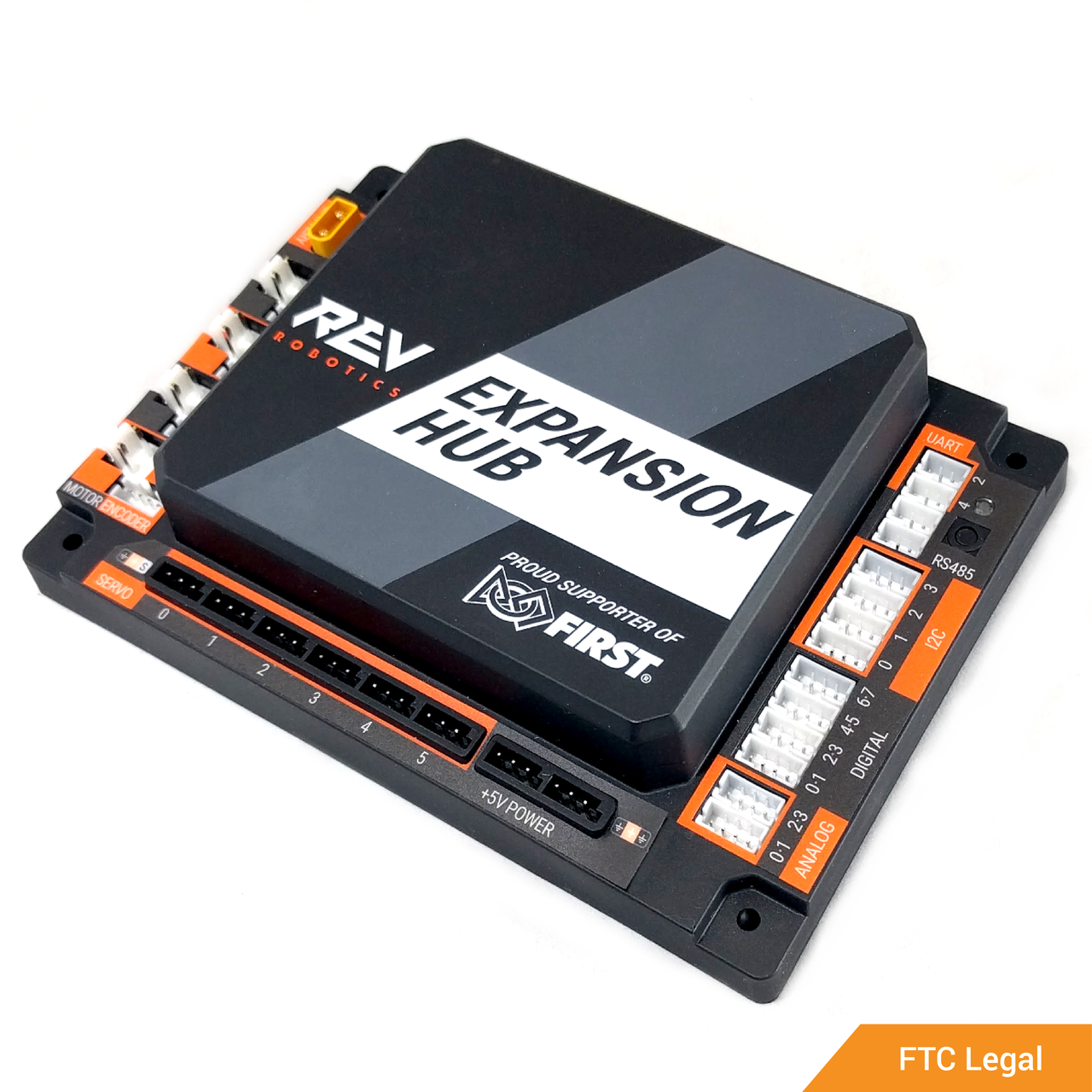

REV Robotics Expansion Hub

Specifications

  • Physical Dimensions
    • 143mm X 103mm X 29.5 mm
    • Mounting holes on a 16mm spacing
  • Actuator interfaces
    • 4 – DC motor ports with built-in encoder ports
      • Control position and velocity of DC motors
    • 6 – Servo motor ports
      • Small and easy to control actuators
  • Sensor and device interfaces
    • 8 – Digital input/output ports
    • 4 – Analog input ports
    • 4 – Independent I2C ports
    • 1 – Internal 9-axis IMU
  • Additional expansion interfaces
    • 2 – RS485 ports
      • Connect additional Expansion Hubs to add more actuator and sensor ports

453,06 (371,36 + IVA)

Checking...

SKU: REV-31-1153 Category:

REV Robotics Expansion Hub

453,06 (371,36 + IVA)

Checking...

SKU: REV-31-1153 Category:

Specifications

  • Physical Dimensions
    • 143mm X 103mm X 29.5 mm
    • Mounting holes on a 16mm spacing
  • Actuator interfaces
    • 4 – DC motor ports with built-in encoder ports
      • Control position and velocity of DC motors
    • 6 – Servo motor ports
      • Small and easy to control actuators
  • Sensor and device interfaces
    • 8 – Digital input/output ports
    • 4 – Analog input ports
    • 4 – Independent I2C ports
    • 1 – Internal 9-axis IMU
  • Additional expansion interfaces
    • 2 – RS485 ports
      • Connect additional Expansion Hubs to add more actuator and sensor ports

European Costumers

The REV Robotics Expansion Hub is an affordable hardware controller which can communicate with any computer, including Android tablets/phones and the REV Robotics Control Hub. The Expansion Hub is loaded with hardware interface options to enable driving motors and servos, interfacing with sensors, and communicating with other devices via several protocol options.

The Expansion Hub incorporates ESD and reverse polarity protection and is purpose built to stand up to the rigors of use in the classroom or on the competition field. In addition to the built in protections, the Hub also features keyed and locking connectors to prevent connection problems in the heat of competition and is fully field upgradable so your hardware can always run the most up-to-date firmware.
