available also in continuos rotation mode
Weight | 225g |
---|---|
Gear Ratio | 9:1 |
Voltage Range | 6V - 8.4V |
No-Load Speed (6.0V) | 1.53sec/60° (6.5 RPM) |
No-Load Speed (7.4V) | 1.26sec/60° (7.9 RPM) |
Stall Torque (6.0-7.4V) | 4248 oz-in (306 kg.cm) |
No-Load Current (6.0V) | 260mA |
No-Load Current (7.4V) | 270mA |
Stall Current (6.0-7.4V) | 2700mA |
Motor Type | Brushless DC |
Direction with Increasing PWM Signal | Counter Clockwise |
Max PWM Range | 800-2200μsec |
Travel per μsec | 0.20°/µsec |
Max Rotation | 280° (0.77 Turns) |
Pulse Amplitude | 3-5V |
Deadband Width | 1 μsec |
Wire Length | 300mm (11.81") |
Wire Gauge | 22AWG |
Intellectual Property | Patented |
Connector Type | 3-Pos TJC8 Servo Connector [MH-FC] |

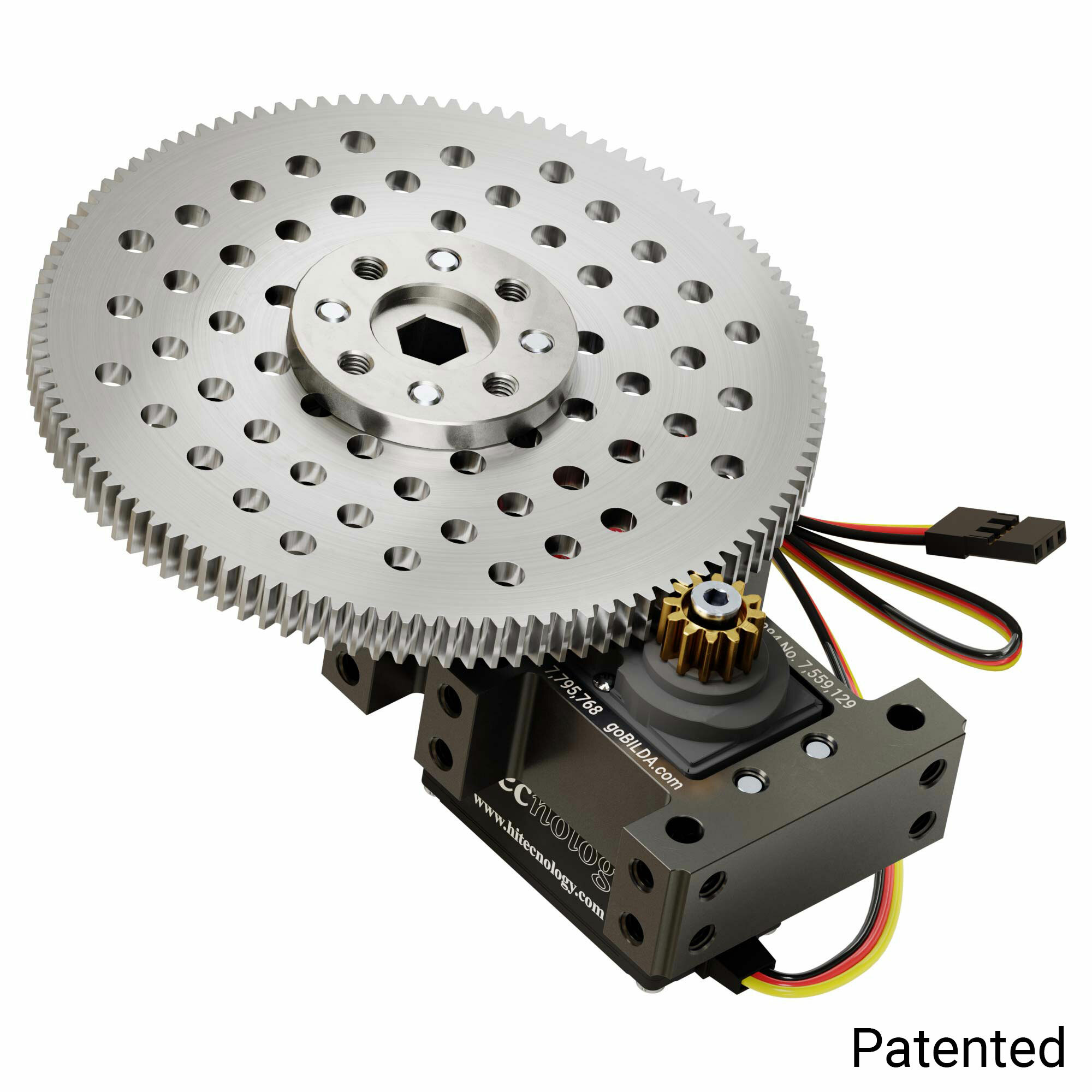

This Shark-9 Servo Gearbox is driven by the Hitec's flagship HSR-M9382TH brushless, titanium geared servo. This gearbox introduces a 9:1 external gear ratio in order to lessen the range while increasing the torque and precision nine-fold. If this ratio doesn't suit your needs, be sure to check out the other Servo Gearbox options.
Having the servo mounted in the gearbox isolates the load to a steel hub-shaft that is supported in a pair of ball bearings to protect the servo from any axial loads. The gearbox opens up a world of mounting possibilities given the M4 threaded holes on each side which are on the grid pattern for compatibility throughout the goBILDA® system. The hub on the top of the gearbox provides threaded holes to fasten to, but you can also opt to fasten straight to the aluminum output gear using M4 hardware and standoffs or spacers. The 8mm REX bore of the hub-shaft can drive an 8mm REX shaft or act as a wire pass-thru.
If you’re not accustomed to using a servo gearbox, it’s just like a normal servo only larger. While the range and torque might be greater than the servos you’re used to, the control signal is identical. It will simply plug into an R/C receiver, an Arduino, Raspberry Pi, or REV controller. Furthermore, since the servo hasn’t been modified in any way, it is FTC legal!
This Servo Gearbox is available in both feedback mode, and continuous mode. In feedback mode, your signal controls the position. In continuous mode, your signal controls the speed and direction. Regardless of which you purchase, it can always be toggled to the other mode with a DPC-11 servo programmer.
