Stepper motor Nema 8
€39,64 (€32,49 + IVA)
Checking...
- Spese di spedizione / Shipping cost
- Taxes if you live outside Italy (read more…)
- Products are shipped worldwide
European Costumers

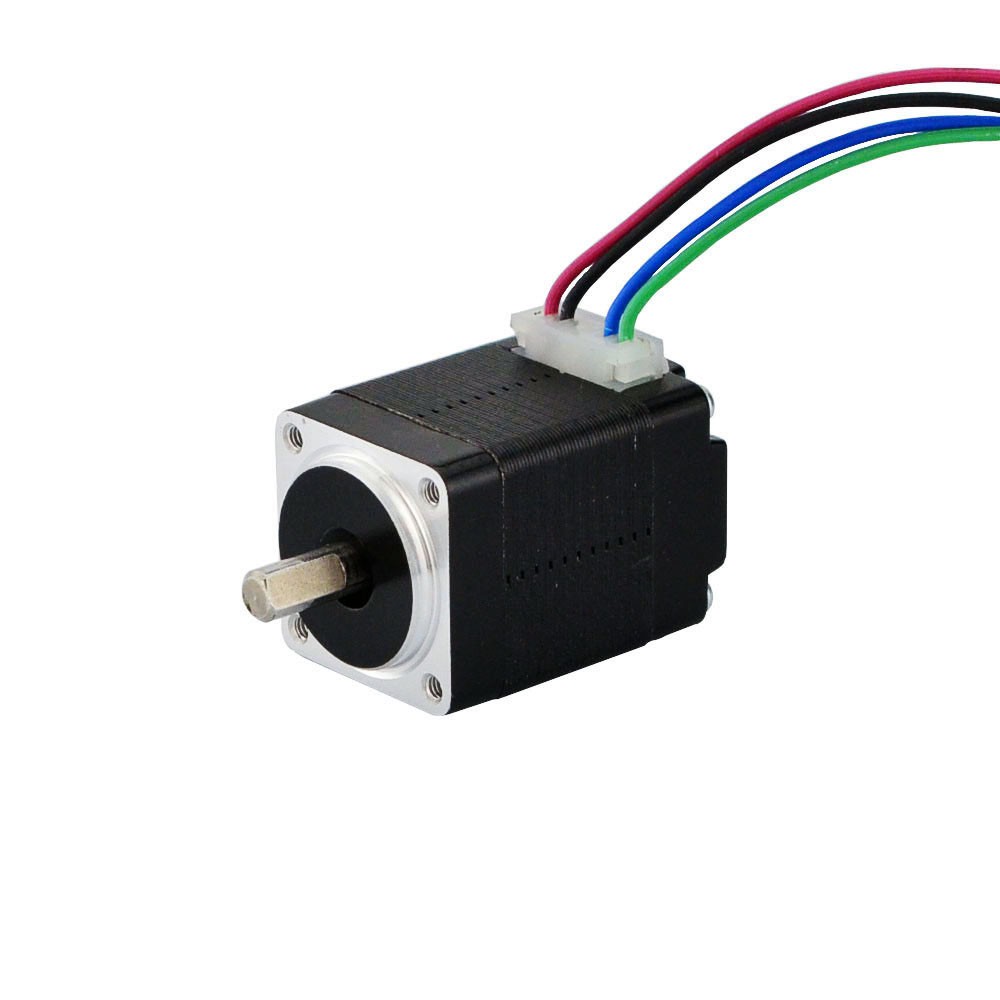

Stepper motor nema 8
Stepper motor nema 8 specifications
| Manufacturer Part Number | 8HS11-0204S |
| Motor Type | Bipolar Stepper |
| Step Angle | 1.8° |
| Holding Torque | 1.6Ncm(2.3oz.in) |
| Rated Current/phase | 0.2A |
| Phase Resistance | 24ohms |
| Recommended Voltage | 12-24V |
| Inductance | 8mH±20%(1KHz) |
| Frame Size | 20 x 20mm |
| Body Length | 28mm |
| Shaft Diameter | Φ4mm |
| Shaft Length | 10mm |
| D-cut Length | 7mm |
| Number of Leads | 4 |
| Lead Length | 300mm |
| Weight | 60g |
Connection
|
Wire Color
|
Black
|
Green
|
Red
|
Blue
|
|
Board Connector
|
A
|
C
|
B
|
D
|
