€120,77 (€98,99 + IVA)

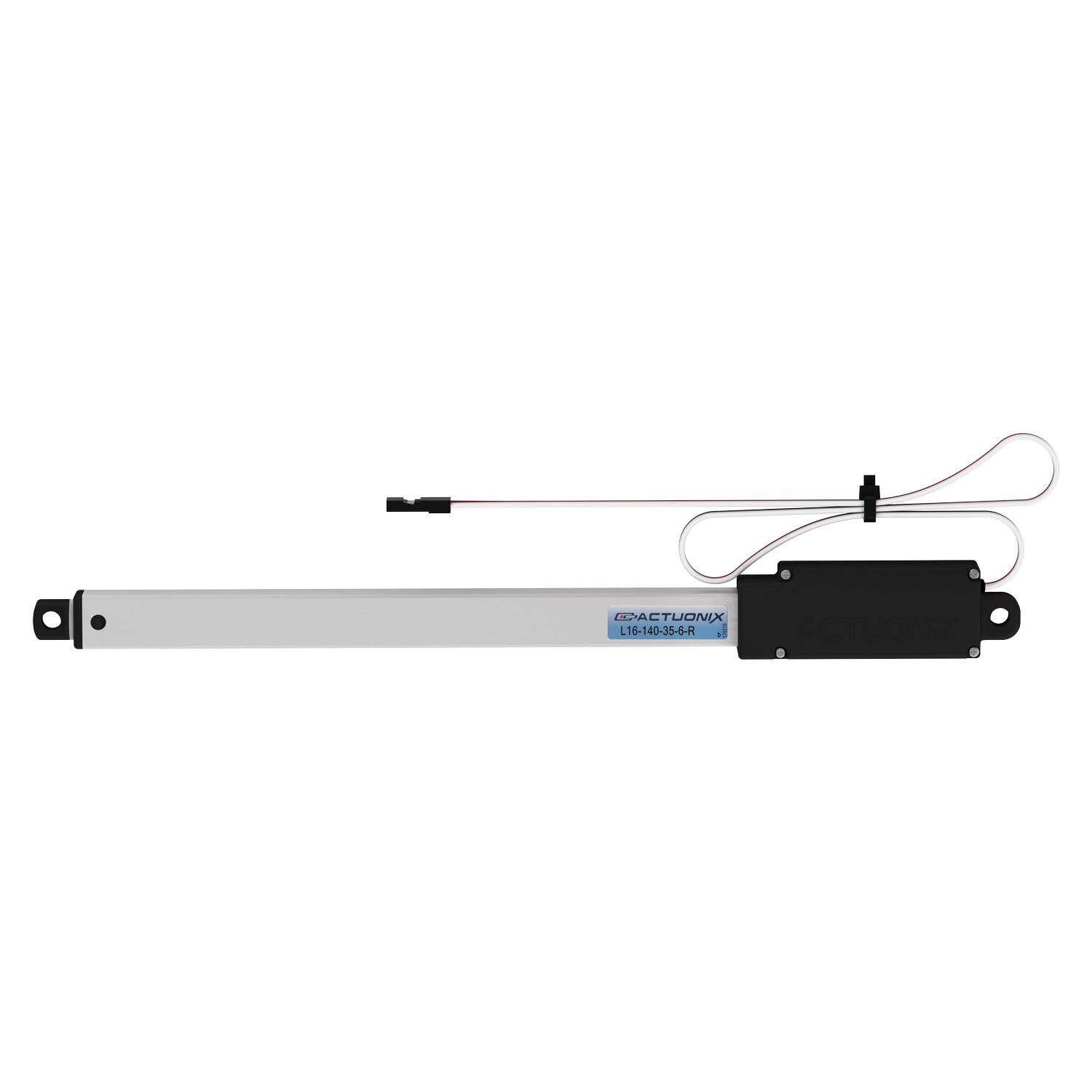

| Stroke | 5.5" |
|---|---|
| Pulse Amplitude | 3 - 5 V |
| Operating Temperature | -10°C ~ +50°C |
| Motor Type | Brushed DC |
| Feedback Style | 16 KΩ / inch |
| Wire Length | 300 mm |
| Weight | 3.65 oz |
| Wire Gauge | 26 AWG |
| Voltage Range (Recommended) | 4.5 - 7.5 V |
| Speed (No Load)* | 32 mm per second |
| Connector Type | Male Servo Connector |
| Gear Ratio | 35:1 |
| Dynamic Thrust* | 50 N |
| Static Load | 250 N powered on, 31 N powered off |
| Current Drain (Stall)* | 650 mA |
| IP Rating | IP54 |
| Duty Cycle | 20% |
| Potentiometer Linearity | Less than 2.00% |
