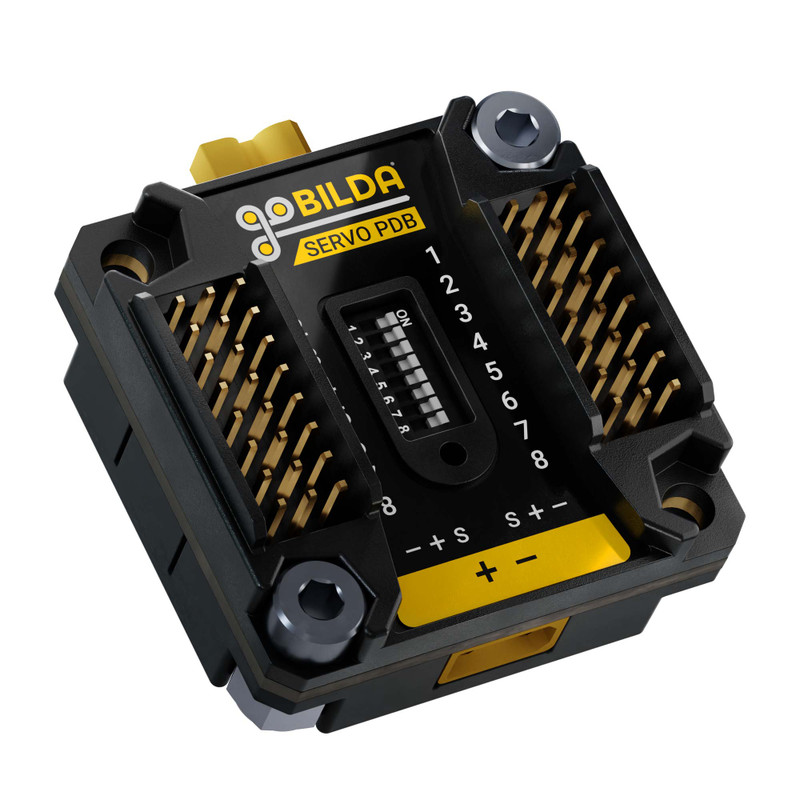

Rocking a full 8 channels to deliver power to your servos, the Servo Power Distribution Board (Servo PDB) distributes power between electronics generating PWM signals and the components receiving them!
All positive contacts of the Servo PDB are tied together as well as its negative contacts, optimizing it to power logic devices and servos with the same battery. You can also isolate electrical connections by removing or excluding positive wires from connections between the Servo PDB and logic controllers.
XT30 input and outpout connectors allow you to daisy-chain boards to share power.
Thru-holes on the 32mm Square Pattern give the Servo PDB extensive compatibility with other components in the goBILDA® system! You can fasten it to your build with M4 screws through two open thru-holes, or through all four thru-holes when you replace its case-securing screws with longer hardware.
The Signal Sharing feature makes it possible to control multiple servos with one signal. Sliding Switch 1 to the "On" position, for example, means the signal pins on channels 1 and 2—both left and right—will be connected. Continue flipping these switches to connect as many channels as your project requires.
This saves you from needing to use obtrusive y-harnesses that can easily make a mess in your electrical setup!
| Weight | 23g |
|---|---|
| Max Current (Continuous) | 15A |
| Max Current (Peak) | 30A |
| Max Voltage | 15VDC |
