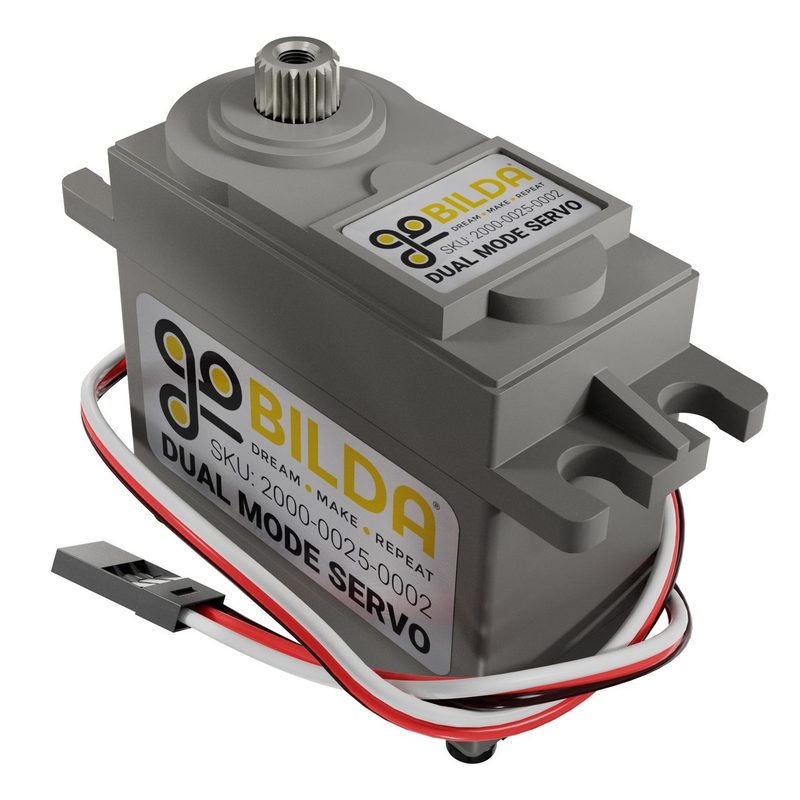

2000 Series Dual Mode Servo (25-2)

44,88 (36,79 + IVA)

SKU: 2000-0025-0002 Category:
Checking...

Download

Drawings

Get Inspired:

Weight 60g
Gear Ratio 300:1
Output Shaft Style 25 Tooth Spline
Voltage Range 4.8V ~ 7.4V
No-Load Speed (4.8V) 0.25sec/60° (40RPM)
No-Load Speed (6.0V) 0.20sec/60° (50RPM)
No-Load Speed (7.4V) 0.16sec/60° (60RPM)
Stall Torque (4.8V) 17.2 kg.cm (240 oz-in)
Stall Torque (6.0V) 21.6 kg.cm (300 oz-in)
Stall Torque (7.4V) 25.2 kg.cm (350 oz-in)
Max PWM Range 500 - 2500 μsec
Travel per µsec (out of box) 0.15°/μsec
Max Travel (out of box) 300°
Pulse Amplitude 3-5V
Direction Clockwise w/ Increasing PWM Signal
Deadband Width 4 μsec
Motor Type Brushed DC
Feedback Style 5KΩ Potentiometer
Output Shaft Support Dual Ball Bearing
Gear Material Steel
Wire Length 300mm
Wire Gauge 22 AWG
Connector Type 3-Pos TJC8 Servo Connector [MH-FC]
