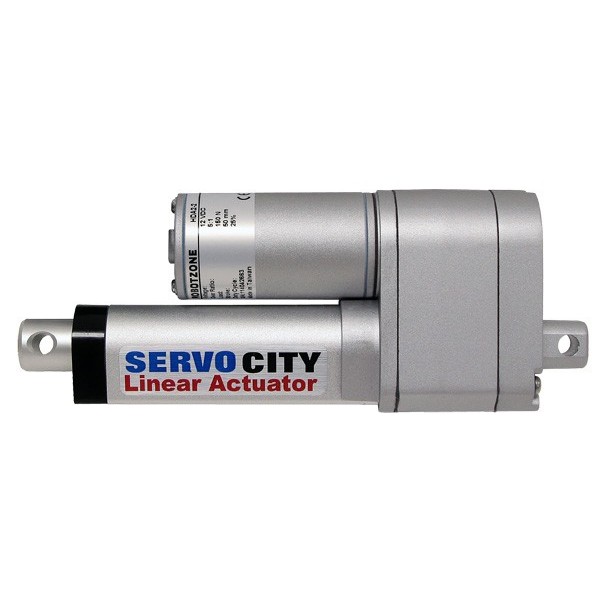

25 lb Thrust Heavy Duty Linear Actuator (HDA2-2)
Product Weight | 40.2 oz |
---|---|
Voltage Range (Recommended) | 6V - 12V |
Operating Temperature | -26°C ~ +65°C |
Speed (No Load)* | 2.00” per second |
Speed (Max Load)* | 1.37” per second |
Dynamic Thrust* | 25 lbs |
Static Load | 500 lbs |
Current Drain (No-Load)* | 800mA |
Current Drain (Max Load)* | 3.8A |
Current Drain (Stall)* | 15A |
Motor Type | 3 Pole Ferrite |
Feedback Style | 10KΩ Potentiometer |
Potentiometer Tolerance | ± 5% |
Potentiometer Linearity | ± 0.25% |
Feedback Density | 2.5KΩ / inch |
Gear Ratio | 5:1 |
Gear Material | Metal Gear Train, Nylon Pinion |
Gearbox Style | Straight Cut Spur |
Wire Length | 24" |
Ingress Protection (IP) | IP54 |
Duty Cycle | 25% (25% on, 75% off) |
Housing Material | Zinc Alloy |
Lead Screw Type | 3mm pitch, single thread |
