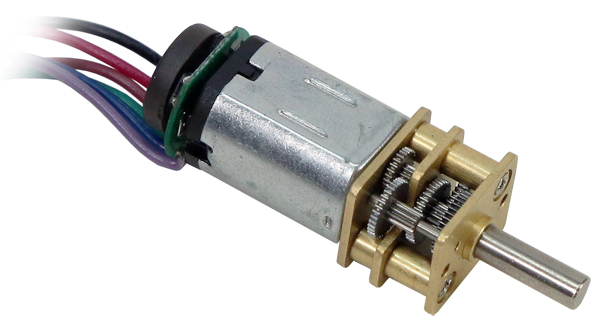

270 RPM Micro Gearmotor with encoder (638101)

32,25 (26,44 + IVA)

Checking...

[et_pb_section bb_built="1"][et_pb_row][et_pb_column type="4_4"][et_pb_text]

Voltage (Nominal) 12V
Voltage Range (Recommended) 6V - 12V
Speed (No Load)* 270 rpm
Current (No Load)* 80mA
Current (Stall)* 1600mA
Torque (Stall)* 25 oz-in
Gear Ratio 100:1
Gear Material Metal Gear
Gearbox Style Straight Cut Spur
Motor Type DC
Output Shaft Diameter 3mm (0.118")
Output Shaft Style D-shaft
Output Shaft Support Brass Case
Electrical Connection Male Spade Terminal
Mounting Screw Size M1.6 x 0.35mm
Product Weight 0.3 oz (8.5g)

[/et_pb_text][et_pb_image _builder_version="3.19" src="https://drive.steplab.net/img_shop/638106_files/dwg/MicroGearmotor_Schematic.jpg" /][/et_pb_column][/et_pb_row][/et_pb_section]
