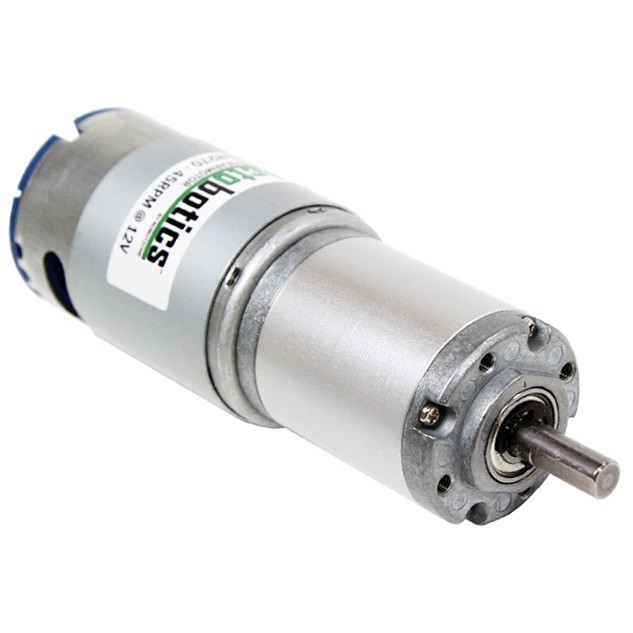

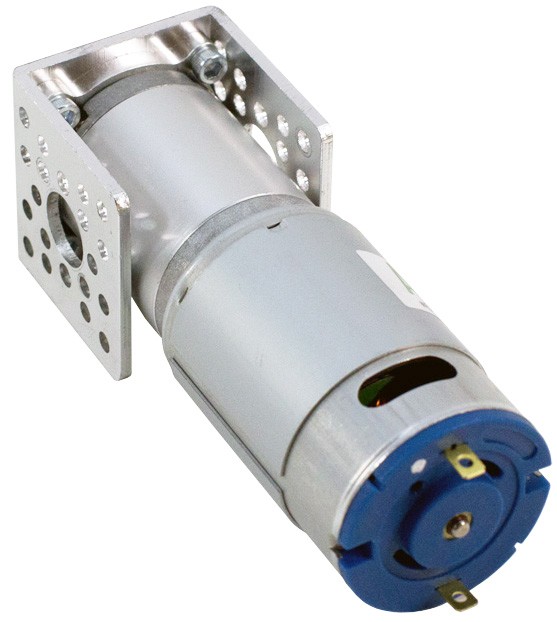

32 RPM HD Premium Planetary Gear Motor

32 RPM HD Premium Planetary Gear Motor

56,11 (45,99 + IVA)

SKU: 638268 Categories: , Tag:
Checking...

[et_pb_section bb_built="1"][et_pb_row][et_pb_column type="4_4"][et_pb_text]

Voltage (Nominal) 12V
Voltage Range (Recommended) 6V - 12V
Speed (No Load)* 32 rpm
Current (No Load)* 0.54A
Current (Stall)* 20A
Torque (Stall)* 2,985.8 oz-in (215 kgf-cm)
Gear Ratio 264:1
Gear Material Metal
Gearbox Style Planetary
Motor Type DC
Motor Brush Type Graphite
Output Shaft Diameter 6mm (0.236”)
Output Shaft Style D-shaft
Output Shaft Support Dual Ball Bearings
Electrical Connection Male Spade Terminal
Operating Temperature -10°C ~ +60°C
Mounting Screw Size M3 x 0.5mm
Product Weight 380g (13.4oz)
