Voltage (Nominal) | 12V |
---|---|
Voltage Range (Recommended) | 3V - 12V |
Speed (No Load)* | 40 rpm |
Current (No Load)* | 45mA |
Current (Stall)* | 500mA |
Torque (Stall)* | 103 oz-in |
Gear Ratio | 90:1 |
Gearbox Style | Straight Cut Spur |
Motor Type | DC |
Output Shaft Diameter | 6mm (0.236") |
Output Shaft Style | D-shaft |
Output Shaft Support | Bushing |
Electrical Connection | Male Spade Terminal |
Mounting Screw Size | M3 x 0.5mm |
Product Weight | 122 g (4.3 oz.) |
€35,21 (€28,86 + IVA)
[et_pb_section bb_built="1"][et_pb_row][et_pb_column type="4_4"][et_pb_text]

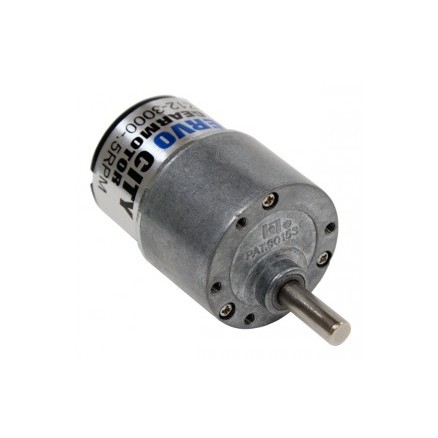

40 RPM Gear Motor
