€35,06 (€28,74 + IVA)

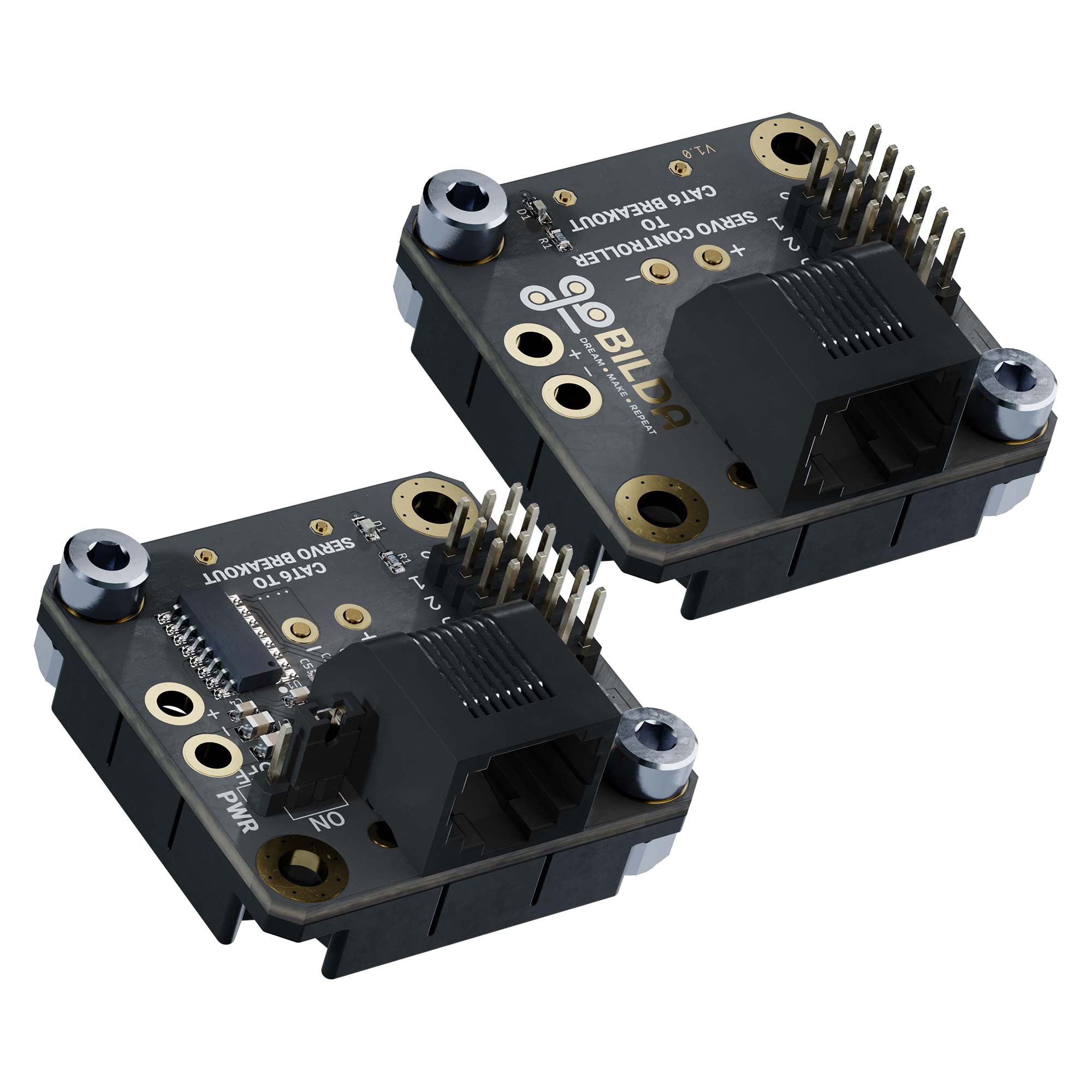

This Boosted Servo Extension lets you control up to four servos over a CAT6 cable. This approach allows you to control your servos from a distance with the rock-solid connectivity of a wired setup. It can control up to four servos at once, making it useful if you need to tidy up the wiring on your project. Includes 1 Sending Board w/case, 1 Receiving Board w/case, and 4 servo extensions.
Ethernet Cables: While CAT6 is the recommeded cable, the RJ45 connector this Boosted Servo Extension uses is also compatible with CAT5, CAT5e, CAT6a, and CAT8 cables.
RC Receivers: This Boosted Servo Extension is compatible with any receiver which uses a PWM signal. This is just about any receiver in the hobby or small-medium robotics industries.
Servos: This Boosted Servo Extension is compatible with any servo which uses a PWM signal. This is just about any servo in the hobby or small-medium robotics industries.
Actobotics Electronics: While this Boosted Servo Extension uses CAT6, it utilizes a newer protocol than the Actobotics CAT6 boards (605102, 605103, 902MSD) making them incompatible with each other.
| Recommended Voltage Range | 6V - 15V |
|---|---|
| Max Voltage Range | 3.3V - 18V |
| Signal Channels | 4 |
| Max Current (When powered at Receiving Board) | 16A Total (4A per Channel) |
| Max Current over CAT6 (When powered at Sending Board) | 4A Total |
| Servo Compatibility | Analog & Digital |
| Maximum Recommended Ethernet Cable Length | 100ft (30M) |
| Power Compatibility | TJC8, XT30, 3mm Solder Holes |
