€107,35 (€87,99 + IVA)
Whether you’re operating a video game or a robot, it’s a joy to use a joystick! You know right away how your thumb can command mechanical movement.

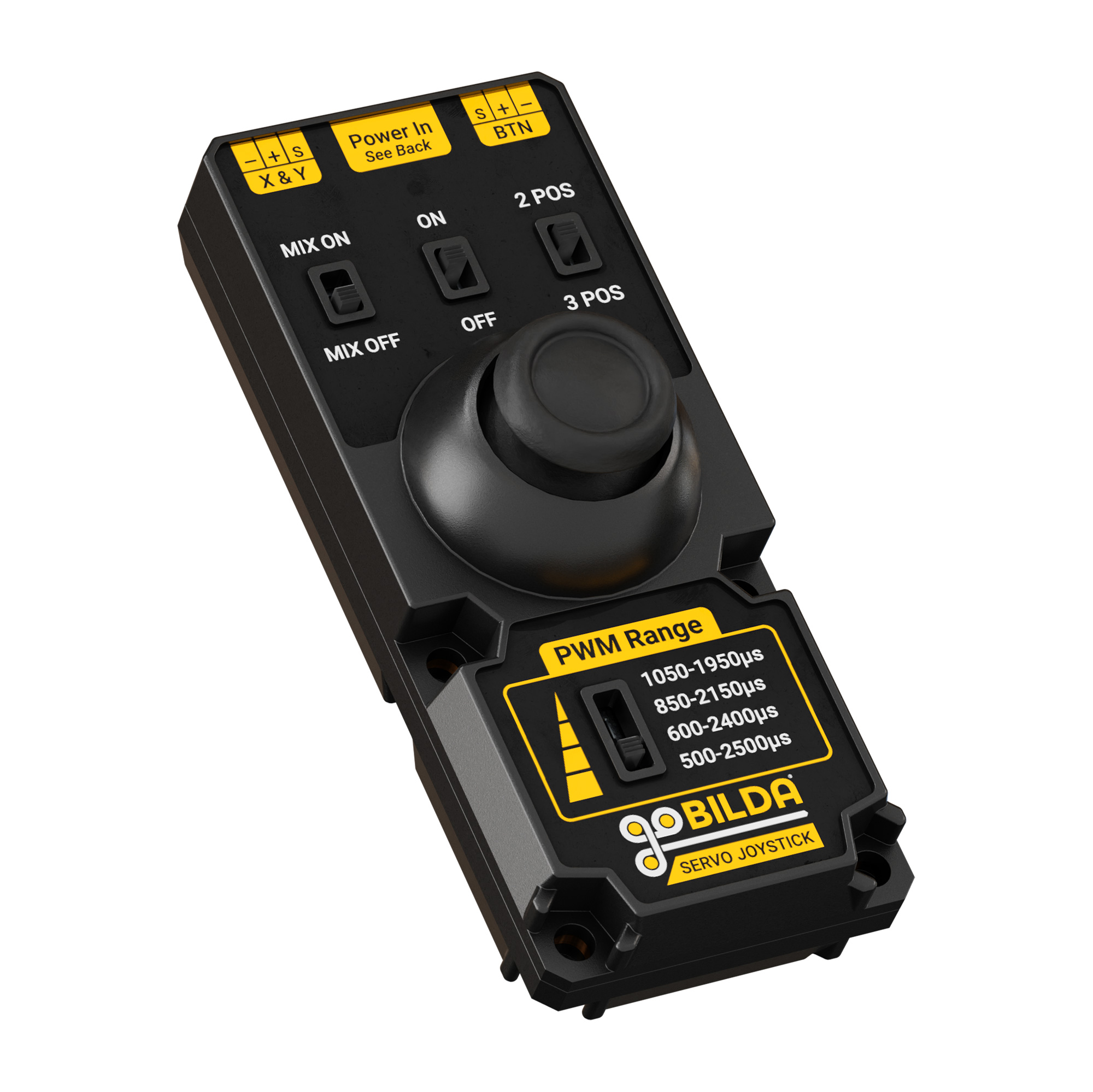

Simple, compact, and ergonomic, the Servo Joystick enhances that easy-peasy joystick control with a suite of configurable control options. Just plug in your servos and use the switches to choose exactly the PWM range and position control style you want.
Three sets of 2.54mm (0.1”) TCJ8 headers allow you to put up to three independently controlled servos under the Servo Joystick’s control. Two can be controlled by the X & Y movement of the joystick, while the third can be cycled through up to three positions via the press of the joystick like a button.
While you probably know signal mixing as a key solution for controlling an R/C chassis, it can also be advantageous in applications like animatronics! The Servo Joystick’s MIX switch allows you to combine the X and Y outputs for an alternative control style.
The Servo Joystick can be powered by a DC input voltage between 5 and 15V. The XT30 connector is the primary power input port; however, if you are using a battery with a connector similar to that of a servo (TJC8), you may plug it into the + and - pins in any of the TJC8 connectors. Note: When power is supplied to the Joystick via the TJC8 connectors, the on/off state is unaffected by your operation of the ON / OFF switch. Additionally, reverse voltage protection only applies to power supplied via the XT30 port.
