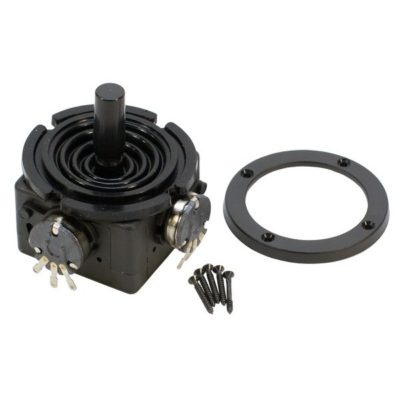

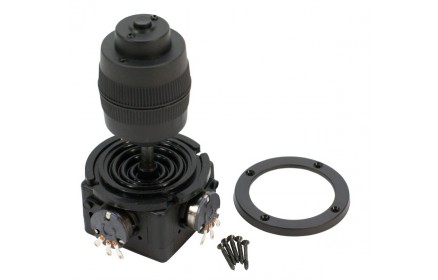

This joystick has 4 functions! Three are proportional and control 5K potentiometers while the fourth is a momentary button on the top. Each of the proportional channels have a return spring so when you release, the stick (or knob on the top) will return to center and have a resistance reading of 2.5K.
€49,09 (€40,24 + IVA)
| Connector | Solder Tabs |
|---|---|
| Operating Temperature | -10° to 80° C |
| Weight | 0.23 lbs |
| Tolerence | +/-20% |
| Linearity | +/-1% |
| Resistance | 5K |
| Temperature Coefficient Resistance | +/-400 ppm/ C° |
| X/Y Axis Electricity Corner | +/-25° |
| Z Axis Electricity Corner | +/-45° |
| Insulation Resistance | 50M @ 500VDC 60 sec. |
| Restoration Error Rate | +/- 0.03K |
| Prolepsis Mechanical Life-cycle | 500,000 cycles |
