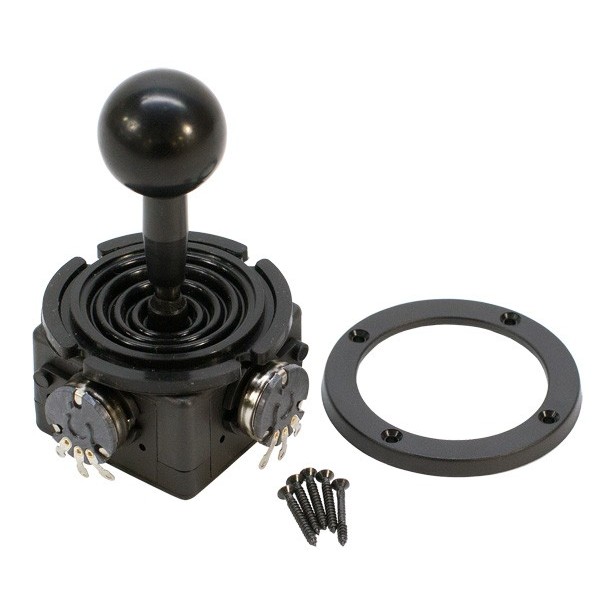

Prolepsis Mechanical Life-cycle: 500,000 cycles
€28,05 (€22,99 + IVA)
| Product Weight | 0.2 lbs |
|---|---|
| Tolerence | +/-20% |
| Linearity | +/-1% |
| Resistance | 5K |
| Operating Temperature | -10° to 80° C |
| Temperature Coefficient Resistance | +/-400 ppm/ C° |
| Output Smoothness | 0.5% Maximum |
| X/Y Axis Electricity Corner | +/-25° |
| Insulation Resistance | 50M @ 500VDC 60 sec. |
| Restoration Error Rate | +/- 0.03K |
| Operate Torque | 90gf (X), 250gf (Y) |
| Connector Type | Solder Tabs |
