2 Function Joystick (605610)

SKU: 605610 Category:

The R-200 joystick is perfect for 2 position applications.

28,05 (22,99 + IVA)

Checking...

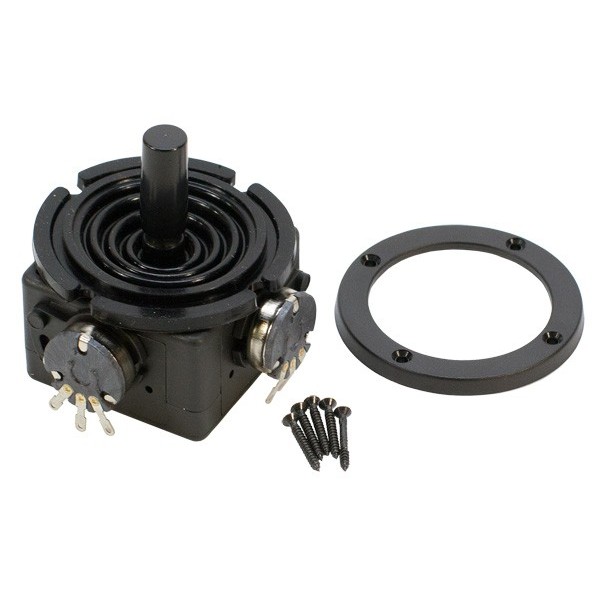

The R-200 joystick is perfect for 2 position applications. It offers 50° of total tilt on both the X and Y axis. Each axis is coupled with 5K potentiometers. Both potentiometers have individual neutral adjustments. Internal springs center the joystick back to neutral (center).

Product Weight 0.18 lbs
Tolerence +/-20%
Linearity +/-1%
Resistance 5K
Operating Temperature -10° to 80° C
Temperature Coefficient Resistance +/-400 ppm/ C°
Output Smoothness 0.5% Maximum
X/Y Axis Electricity Corner +/-25°
Insulation Resistance 50M @ 500VDC 60 sec.
Restoration Error Rate +/- 0.03K
Operate Torque 90gf (X), 250gf (Y)
Connector Type Solder Tabs
