2 Function Joystick (Thick Stick)

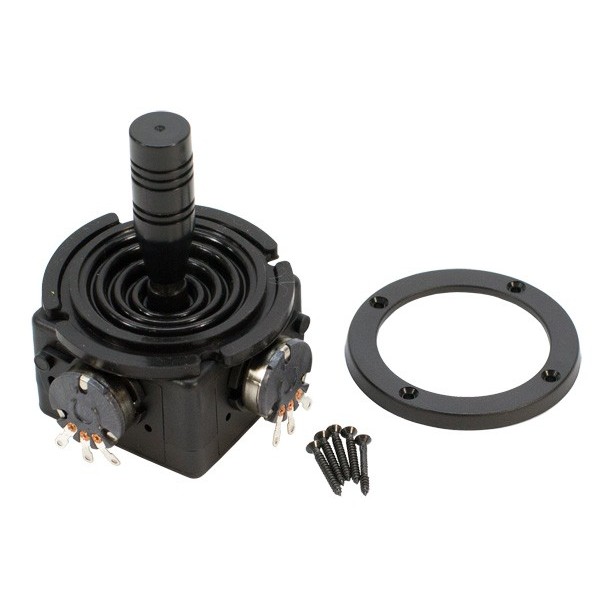

The R-204 joystick is perfect for 2 position applications. It offers 50° of total tilt on both the X and Y axis. Each axis is coupled with 5K potentiometers. Both potentiometers have individual neutral adjustments. Internal springs center the joystick back to neutral (center). This joystick has the same specifications as the R200MB2, but the diameter of the stick is slightly thicker measuring 0.473” (12mm).
€27,56 (€22,59 + IVA)
- Spese di spedizione / Shipping cost
- Taxes if you live outside Italy (read more…)
- Products are shipped worldwide
2 Function Joystick (Thick Stick)
€27,56 (€22,59 + IVA)
The R-204 joystick is perfect for 2 position applications. It offers 50° of total tilt on both the X and Y axis. Each axis is coupled with 5K potentiometers. Both potentiometers have individual neutral adjustments. Internal springs center the joystick back to neutral (center). This joystick has the same specifications as the R200MB2, but the diameter of the stick is slightly thicker measuring 0.473” (12mm).
European Costumers
The R-204 joystick is perfect for 2 position applications. It offers 50° of total tilt on both the X and Y axis.
| Product Weight | 0.2 lbs |
|---|---|
| Tolerence | +/-20% |
| Linearity | +/-1% |
| Resistance | 5K |
| Operating Temperature | -10° to 80° C |
| Temperature Coefficient Resistance | +/-400 ppm/ C° |
| Output Smoothness | 0.5% Maximum |
| X/Y Axis Electricity Corner | +/-25° |
| Insulation Resistance | 50M @ 500VDC 60 sec. |
| Restoration Error Rate | +/- 0.03K |
| Operate Torque | 90gf (X), 250gf (Y) |
| Connector Type | Solder Tabs |
