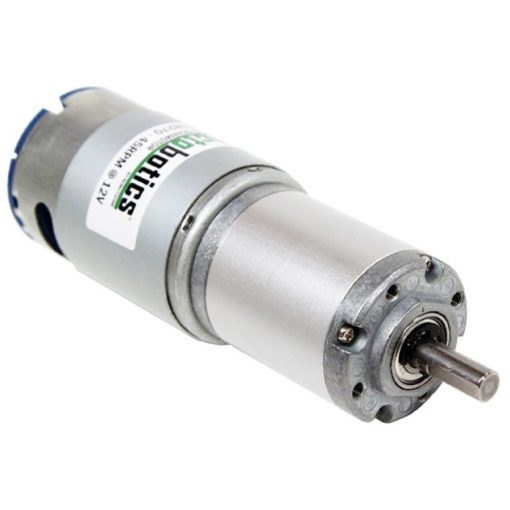

45 RPM HD Premium Planetary Gear Motor
€40,25 (€32,99 + IVA)
[et_pb_section bb_built="1"][et_pb_row][et_pb_column type="4_4"][et_pb_text]
| Voltage (Nominal) | 12V |
|---|---|
| Voltage Range (Recommended) | 6V - 12V |
| Speed (No Load)* | 45 rpm |
| Current (No Load)* | 0.53A |
| Current (Stall)* | 20A |
| Torque (Stall)* | 2,124.8 oz-in (153 kgf-cm) |
| Gear Ratio | 189:1 |
| Gear Material | Metal |
| Gearbox Style | Planetary |
| Motor Type | DC |
| Motor Brush Type | Graphite |
| Output Shaft Diameter | 6mm (0.236”) |
| Output Shaft Style | D-shaft |
| Output Shaft Support | Dual Ball Bearings |
| Electrical Connection | Male Spade Terminal |
| Operating Temperature | -10°C ~ +60°C |
| Mounting Screw Size | M3 x 0.5mm |
| Product Weight | 380g (13.4oz) |
