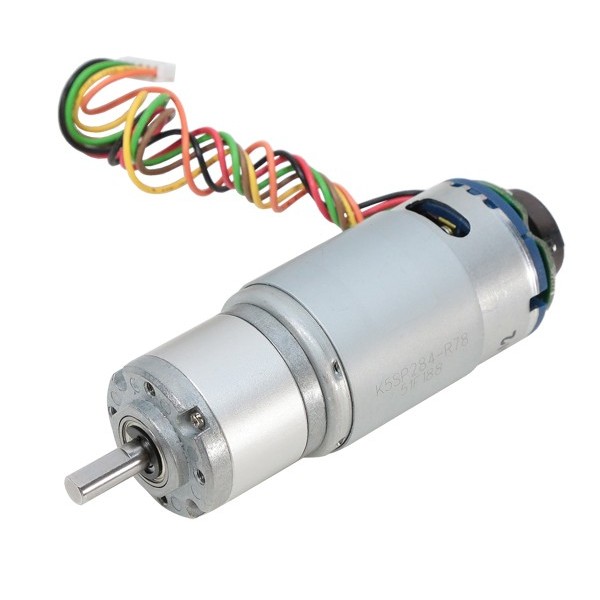

638332 612 RPM HD Premium Planetary Gear Motor w/Encoder

84,17 (68,99 + IVA)

95 in stock

SKU: 638332 Categories: , Tags: ,
Checking...

[et_pb_section bb_built="1"][et_pb_row][et_pb_column type="4_4"][et_pb_text]

Voltage (Nominal) 12V
Voltage Range (Recommended) 6V - 12V
Speed (No Load)* 612 rpm
Current (No Load)* 0.52A
Current (Stall)* 20A
Torque (Stall)* 222.2 oz-in (16 kgf-cm)
Gear Ratio 13.734:1
Gear Material brass primary, nylon secondary, steel tertiary
Gearbox Style Planetary
Motor Type DC
Motor Brush Type Graphite
Output Shaft Diameter 6mm (0.236”)
Output Shaft Style D-shaft
Output Shaft Support Dual Ball Bearings
Electrical Connection PH Series JST 6-pin Connector (2mm Pitch)
Operating Temperature -10°C ~ +60°C
Mounting Screw Size M3 x 0.5mm
Product Weight 330g (11.64oz)
Encoder: Cycles Per Revolution (Motor Shaft) 12
Encoder: Cycles Per Revolution (Output Shaft) 164.808
Encoder: Countable Events Per Revolution (Motor Shaft) 48
Encoder: Countable Events Per Revolution (Output Shaft) 659.232
Encoder Type Relative, Quadrature
Encoder Sensor Type Magnetic (Hall Effect)
Encoder Sensor Input Voltage Range 2.4 - 26V
Encoder Sensor Output Pulse Amplitude ~=Sensor Input Voltage
