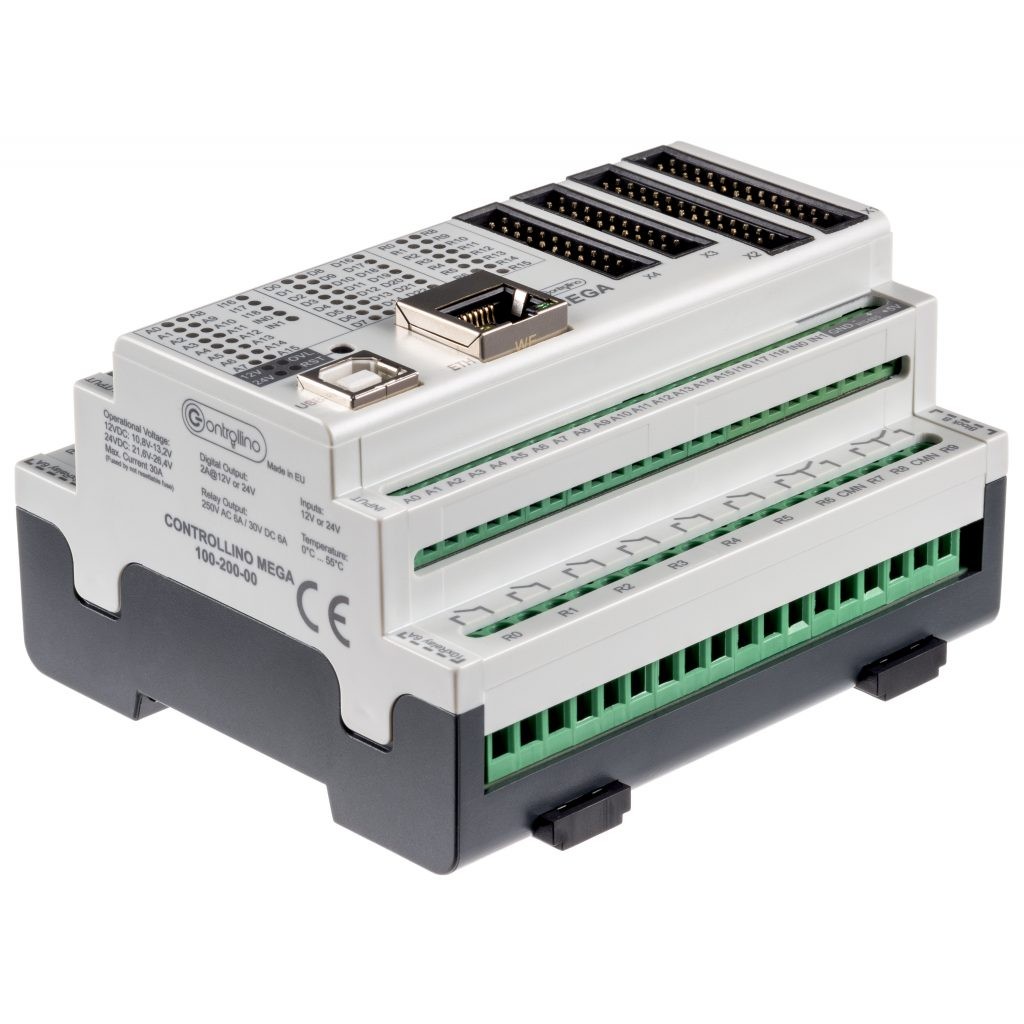

Controllino Mega

Control system based on #Arduino Core, programmable with the Arduino ide



427,56 (350,46 + IVA)

Available on back-order

SKU: cmega Category:
CPU Type ATmega2560
CPU Clock Speed 16 MHz
Corrente Max 30 Ampere
RTC support YES
LAN Interface 1x
SERIAL Interface 2x
RS485 Interface 1x
SPI Interface 1x
I2C Interface 1x
Digital Inputs 5x (I16, I17, I18, IN0, IN1)
Analog Inputs -
Digital/Analog Inputs 16x (A0-A15)
Digital Outputs 12x Half-Bridge - 2A @12V or 24V (D0-D15) + 12x High Side Switch – 2A @12V or 24V (D12-D23)
Relay Outputs 16x – 230V / 6A
Analog Outputs 15x PWM (D0-D11, D14-D16)
