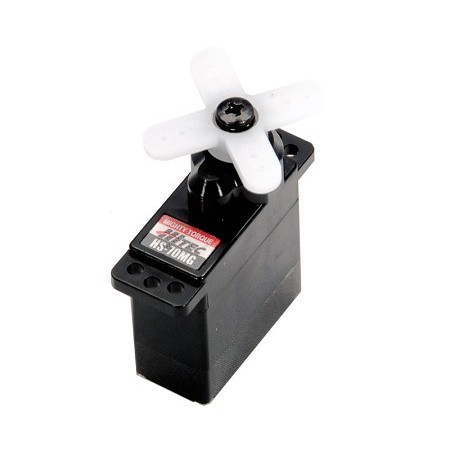

Hitec HS-70MG SERVO

Hitec's strong and speedy analog HS-70MG possess the performance qualities necessary for the new class of 42-48 inch performance 3D aircraft and 450-size helicopters. Featuring Hitec’s durable metal gears, cored motors, top ball bearings and Generation 1 circuitry, these new additions to our vast servo family will have all your planes and helis flying with remarkable precision and power.

44,53 (36,50 + IVA)

SKU: HS-70MG Category:
Checking...
Dimensions 0.92” x 0.45” x 1.14” (23.6 x 11.6 x 29mm)
Product Weight 0.44 oz (12.5g)
Output Shaft Style 25 tooth (B1) spline
Voltage Range 4.8V - 6.0V
No-Load Speed (4.8V) 0.17 sec/60°
No-Load Speed (6.0V) 0.14 sec/60°
Stall Torque (4.8V) 33.51 oz/in. (2.4 kg.cm)
Stall Torque (6.0V) 41.89 oz/in. (3.0 kg.cm)
Max PWM Signal Range (Standard) 650-2370μsec
Travel per µs (out of box) .113°/μsec
Max Travel (out of box) 194°
Pulse Amplitude 3-5V
Operating Temperature -20°C to +60°C
Continuous Rotation Modifiable No
Direction w/ Increasing PWM Signal Clockwise
Deadband Width 2µs
Motor Type Cored
Feedback Style 5KΩ Potentiometer
Output Shaft Support Top Ball Bearing
Gear Type Straight Cut Spur
Gear Material Metal
Wire Length 11.8” (30mm)
Wire Gauge 28AWG
