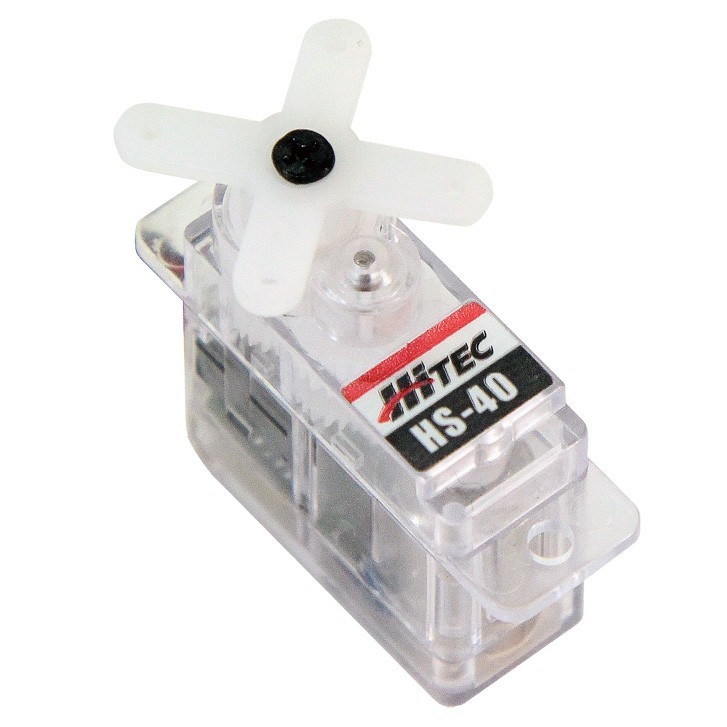

HS-40HB hitec servo

Hitec's research department and engineers work tirelessly at developing economical servo technology that outperforms the competition and the new HS-40 nano analog servo delivers just that. With a three-pole cored motor and resilient nylon gears, this affordable servo is a dream come true for micro aircraft, sailplane and helicopter pilots. Slightly larger than the popular HS-35HD with an operating range of 4.8 to 6.0 volts, the HS-40 is a solid performer that is easy on your wallet!

19,82 (16,25 + IVA)

SKU: hs-40 Category:
Dimensions 0.79" x 0.34"x 0.67" (20 x 8.6 x 17mm)
Product Weight 0.17oz (4.8g)
Output Shaft Style 15 tooth (A1) spline
Voltage Range 4.8V - 6.0V
No-Load Speed (4.8V) 0.12 sec/60°
No-Load Speed (6.0V) 0.10 sec/60°
Stall Torque (4.8V) 8.4 oz-in. (0.6kg.cm)
Stall Torque (6.0V) 10.5 oz-in. (0.75kg.cm)
Max PWM Signal Range (Standard) 615-2495 μsec
Travel per µs (out of box) .104°/μsec
Max Travel (out of box) 195°
Pulse Amplitude 3-5V
Operating Temperature -20°C to +60°C
Continuous Rotation Modifiable No
Direction w/ Increasing PWM Signal Clockwise
Deadband Width 8µs
Motor Type Three Pole Cored
Feedback Style 5KΩ Potentiometer
Output Shaft Support Outer case serves as bearing
Gear Type Straight Cut Spur
Gear Material Nylon
Wire Length 6.29" (160mm)
Wire Gauge 28AWG
