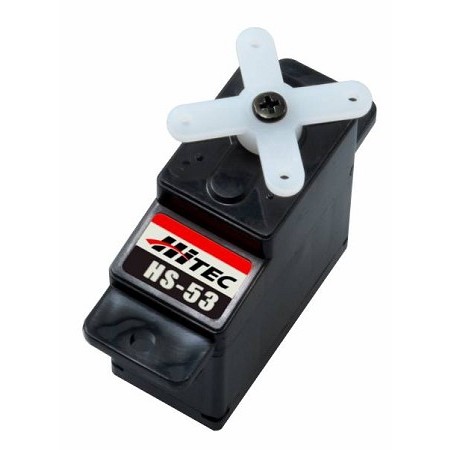

HS-53 Hitec Servo

The HS-53 is Hitec’s economical feather servo, designed to compete head to head with the influx of low cost servos, while still maintaining their renowned quality. Designed with a durable nylon gear train and an efficient three-pole cored motor, this light-weight servo is a terrific fit for small power planes and gliders. Priced right, it is sure to become a universal favorite!

19,70 (16,15 + IVA)

SKU: hs-53 Category:
Dimensions 1.12” x 0.46” x 0.95” (22.8 x 11.6 x 22.6mm)
Product Weight 0.25oz (8g)
Output Shaft Style 15 tooth (A1) spline
Voltage Range 4.8V - 6.0V
No-Load Speed (4.8V) 0.14 sec/60°
No-Load Speed (6.0V) 0.11 sec/60°
Stall Torque (4.8V) 20.94 oz-in. (1.51kg.cm)
Stall Torque (6.0V) 26.53 oz-in. (1.91kg.cm)
Max PWM Signal Range (Standard) 553-2270μsec
Travel per µs (out of box) .105°/μsec
Max Travel (out of box) 180.5°
Pulse Amplitude 3-5V
Operating Temperature -20°C to +60°C
Continuous Rotation Modifiable No
Direction w/ Increasing PWM Signal Clockwise
Deadband Width 8µs
Motor Type Three Pole Cored
Feedback Style 5KΩ Potentiometer
Output Shaft Support Outer case serves as bearing
Gear Type Straight Cut Spur
Gear Material Nylon
Wire Length 6.29" (160mm)
Wire Gauge 28AWG
