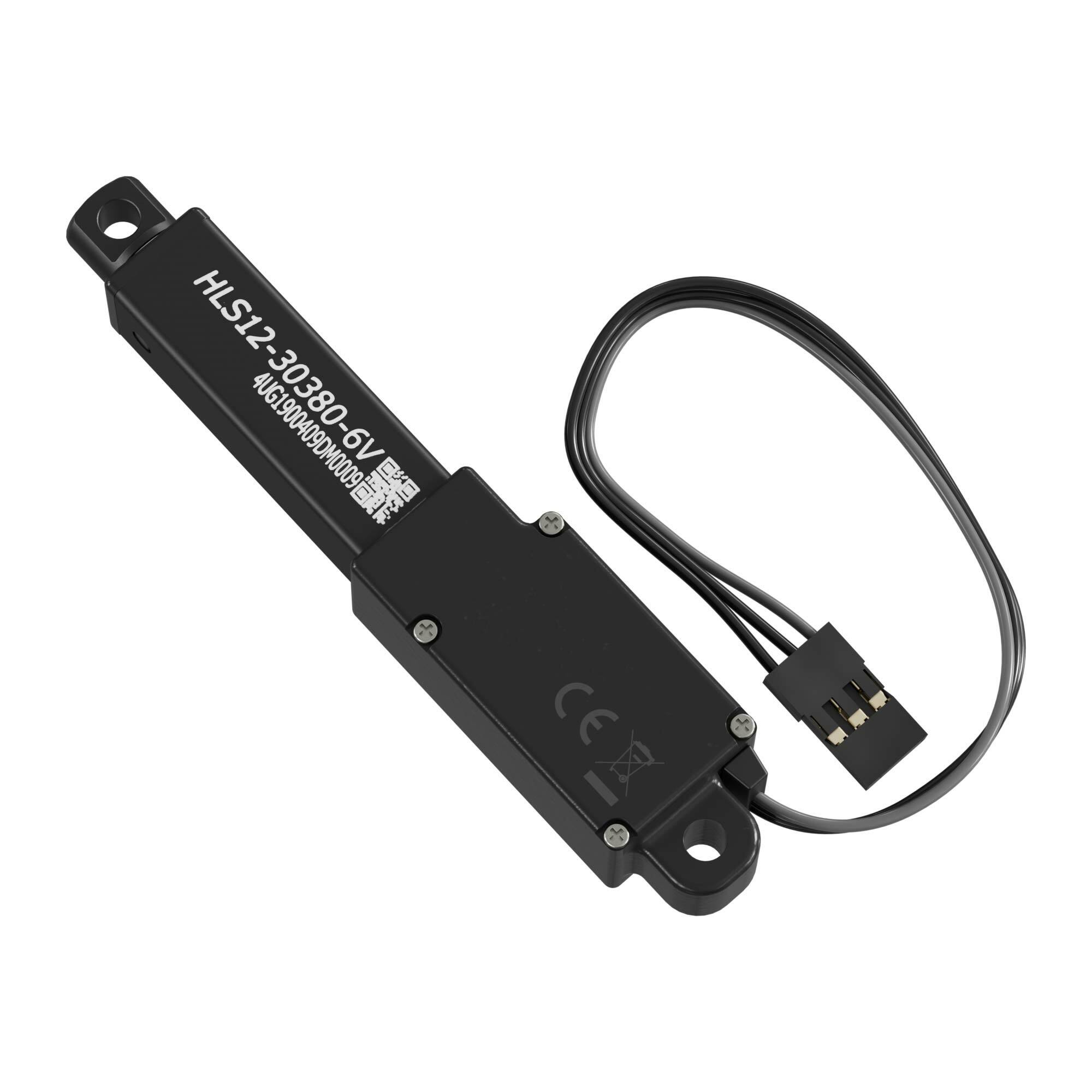

Hitec Linear Servo (1.2" Stroke, 0.2"/sec, 48.9lb Thrust)

140,29 (114,99 + IVA)

SKU: HLS12-30380-6V Categories: ,
Checking...

Download

Drawings
Weight 1.1oz
Stroke 1.2"
Gear Ratio 380:1
Voltage Range 4.8 - 7.4VDC
Operating Temperature -10°c ~ +50°c
Motor Type Brushed DC
Feedback Style Digital
Wire Length 6.3"
Connector Type 3-Pos TJC8 Servo Connector [MH-FC]
Manufacturer Part Number 41013
Max PWM Range 900-2100μsec
Speed (No Load) @ 6VDC 3.3mm/sec | 0.1"/sec
Speed (No Load) @ 7.4VDC 4.1mm/sec | 0.2"/sec
Thrust @ 6VDC 2.5kg | 5.5lb
Thrust @ 7.4VDC 3.1kg | 6.8lb
Current Drain (Stall) @ 6VDC 500 mA
Current Drain (Stall) @ 7.4VDC 620 mA
